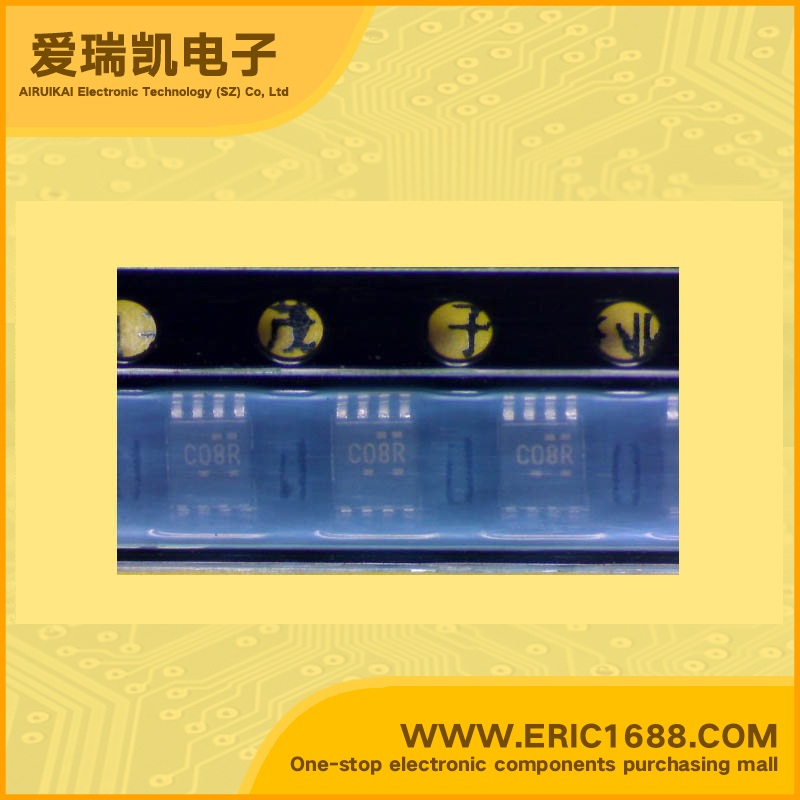

集成电路IC 与门 SN74LVC2G08DCU VFSOP8/US8 marking/标记 C08R

热销商品

产品描述
逻辑类型Logic Type与门 AND Gate
电路数Number of Circuits2
输入数Number of Inputs2
电源电压VccVoltage - Supply1.65V~5.5V
静态电流IqCurrent - Quiescent (Max)10µA
输出高,低电平电流Current - Output High, Low-32mA,32mA
低逻辑电平Logic Level - Low0.7 V ~ 0.8 V
高逻辑电平Logic Level - High1.7 V ~ 2 V
传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL3.8ns @ 5V,50pF
Description & ApplicationsDUAL 2-INPUT POSITIVE-AND GATE ;• Available in the Texas Instruments • Typical VOHV (Output VOH Undershoot) NanoFree™ Package >2 V at VCC= 3.3 V, TA= 25°C • Supports 5-V VCC Operation • I off Supports Partial-Power-Down Mode • Inputs Accept Voltages to 5.5 V Operation • Latch-Up Performance Exceeds 100 mA Per • Max tpd of 4.7ns at 3.3 V JESD 78, Class II • Low Power Consumption, 10-µA Max ICC • ESD Protection Exceeds JESD 22 • ±24-mA Output Drive at 3.3 V – 2000-V Human-Body Model (A114-A) • Typical VOLP (Output Ground Bounce)<0.8 V at – 1000-V Charged-Device Model (C101) VCC= 3.3 V, TA= 25°C
描述与应用双路2输入正与门;•德州仪器典型VOHV (输出VOH冲) NanoFree™封装>2 V在VCC=3.3 V,TA= 25°C •支持5-V VCC操作•我 关闭支持部分掉电模式 •输入接受5.5 V操作电压 •闭锁性能超过100 mA每 •最大TPD4.7ns电源电压为3.3 V JESD 78,II类 •低功耗,10μA最大ICC •ESD保护超过JESD22 •±24 mA输出驱动在3.3 V - 2000-V人体模型(A114-A) •典型的VoIP (输出地弹跳)<0.8 V - 1000-V带电器件模型(C101) VCC= 3.3 V,TA= 25°C
