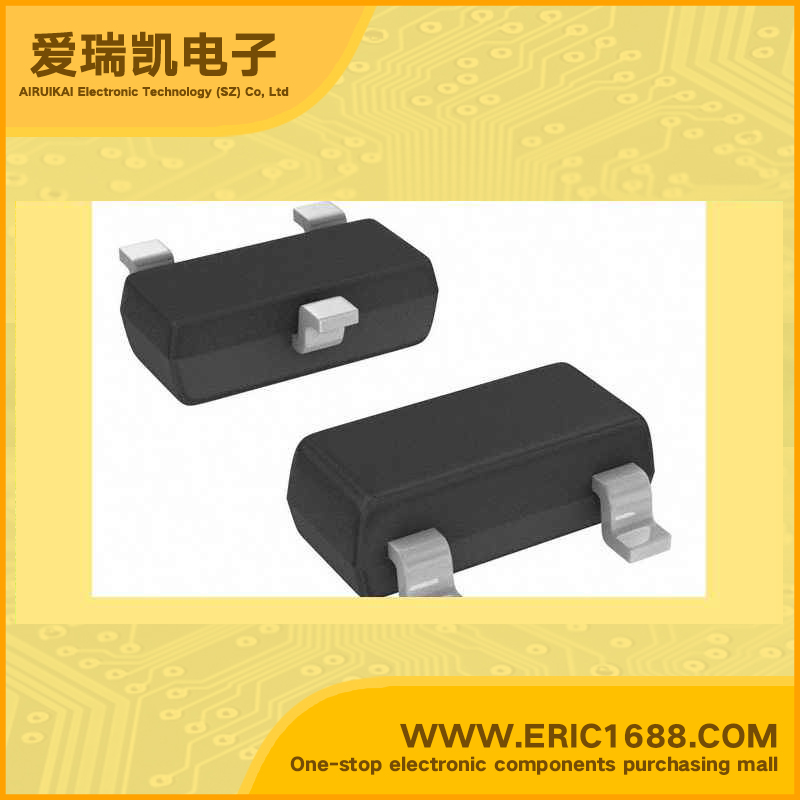

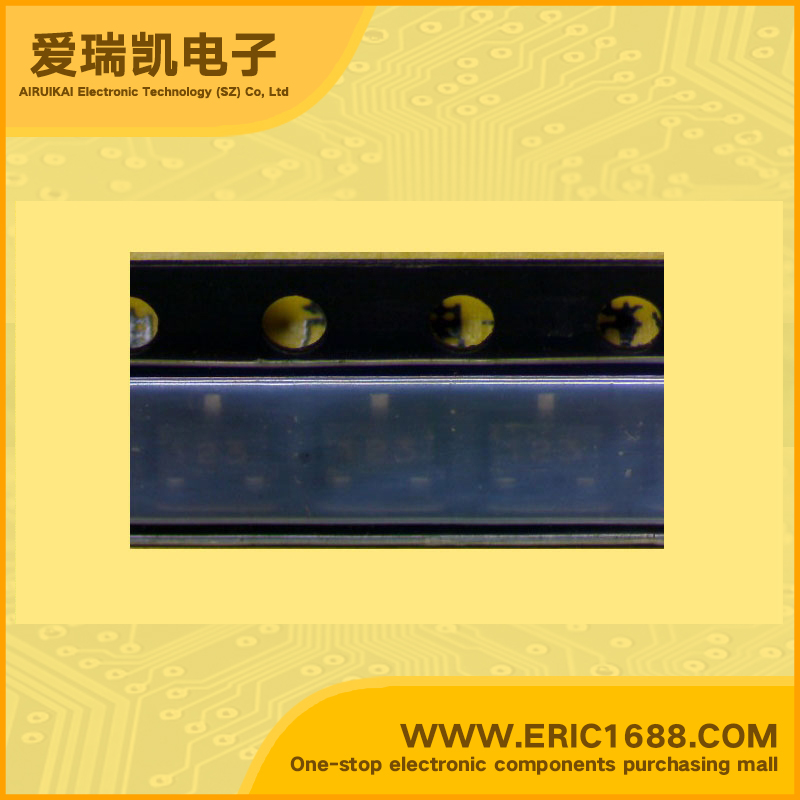

STC123SF NPN三极管 20V 1A 260MHz 200~450 100mV/0.1V SOT-23/SC-59 marking/标记 123 低电压大电流驱动器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 1A |
| 截止频率fTTranstion Frequency(fT) | 260MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 200~450 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 100mV/0.1V |
| 耗散功率PcPower Dissipation | 350mW/0.35W |
| Description & Applications | Features • Low saturation medium current application • Extremely low collector saturation voltage • Suitable for low voltage large current drivers • High DC current gain and large current capability • Low on resistance : RON=0.6Ω(Max.) (IB=1mA) |
| 描述与应用 | 特点 •低饱和中等电流应用 •极低的集电极饱和电压 •适用于低电压大电流驱动器 •高直流电流增益和大电流容量 •低导通电阻RON=0.6Ω（最大）（IB=1MA） |
| 规格书PDF |
