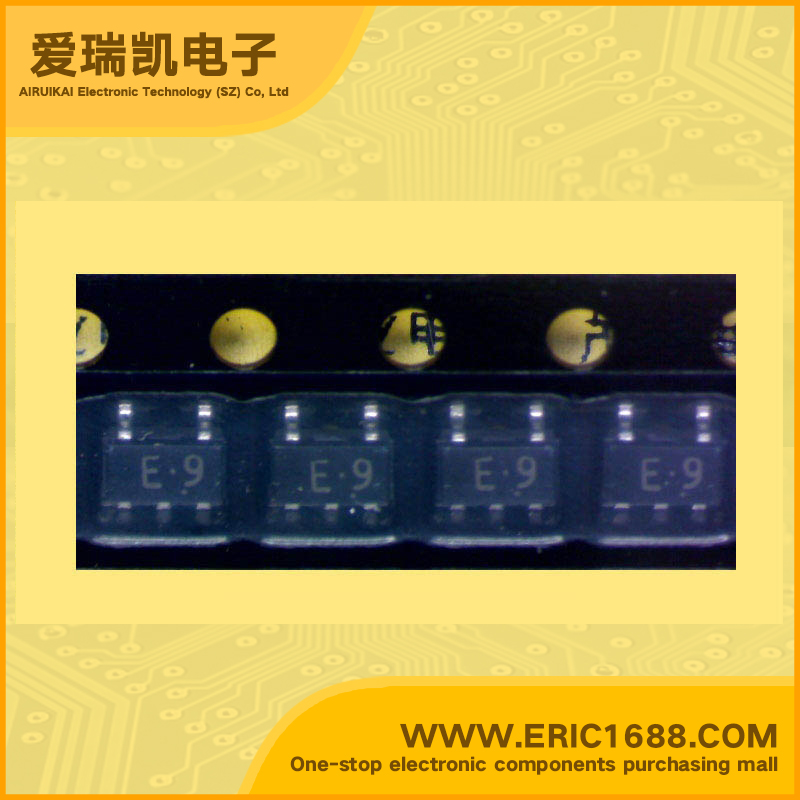

集成电路IC 模拟开关 TC7S66F SOT-153 marking/标记 E9
| 开关配置Circuit | 单刀双掷 1*SPDT |
| 导通电阻On-State Resistance | 300Ω...Vdd-Vss=5V 110Ω...Vdd-Vss=10V 70Ω...Vdd-Vss=15V |
| 电源电压Voltage - Supply | Vss-0.5~Vss+20 |
| Description & Applications | Bilateral Switch CMOS digital integrated circuit silicon monolithic The TC7S66 is a high speed C²MOS BILATERAL SWITCH fabricated with silicon gate C²MOS technology. It consists of a high speed switch capable of controlling either digital or analog signals while maintaining the C²MOS low power dissipation. Control input (C) is provided to control the switch. The switch turns ON while the C input is high,and the switch turns OFF while low. Input is equipped with protection circuits against stati discharge or transient excess voltage. |
| 描述与应用 | 双向开关 CMOS数字集成电路硅单片 TC7S66是一种高速C²MOS双边开关制造与硅栅C²MOS技术。 它由一个高速开关能够控制数字或模拟信号，同时保持的C²MOS低功耗。 控制输入端（C）的设置来控制开关。 而C输入高开关打开，低时开关关闭。 对静态放电或瞬态过电压保护电路输入端配备。 |
| 规格书PDF |
