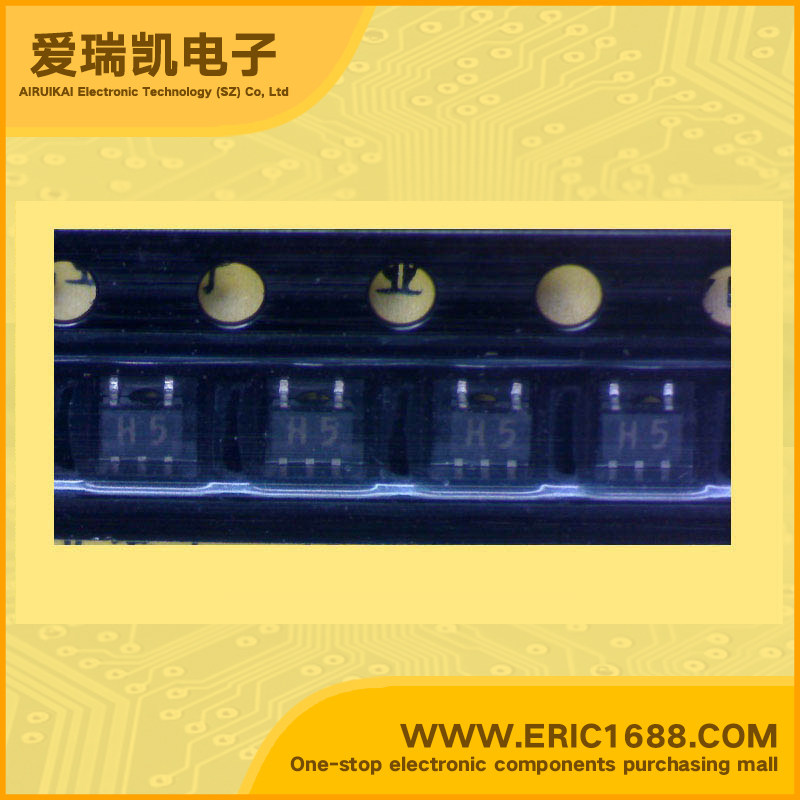

集成电路IC 反相器 TC7SH04FU SOT-353/USV marking/标记 H5
| 逻辑类型Logic Type | 反相器 Inverter |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 2v~5.5v |
| 静态电流IqCurrent - Quiescent (Max) | 2uA |
| 输出高，低电平电流Current - Output High, Low | -8mA,8mA |
| 低逻辑电平Logic Level - Low | 0.5V |
| 高逻辑电平Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 7.5ns @4.5V~5.5V ，50pF |
| Description & Applications | INVERTER ；High Speed : tpd = 3.8ns (typ.) at VCC = 5V, CL = 15pF • Low power dissipation : ICC = 2 μA (max) at Ta = 25°C • High noise immunity : VNIH = VNIH = 28% VCC (min) • 5.5-V tolerant input • Wide operating voltage range : VCC = 2 to 5.5V • Identical pin assignment and function with TC7S04 |
| 描述与应用 | 逆变器;高速：TPD =3.8ns电源（典型值） 在VCC =5V，CL=15pF的 •低功耗：ICC= 2μA（最大值）在大= 25°C •高抗干扰性：VNIH= VNIH=28％VCC （分钟） •5.5-V宽容输入 •宽工作电压范围：VCC=2〜5.5V •相同的引脚分配和功能TC7S04 |
