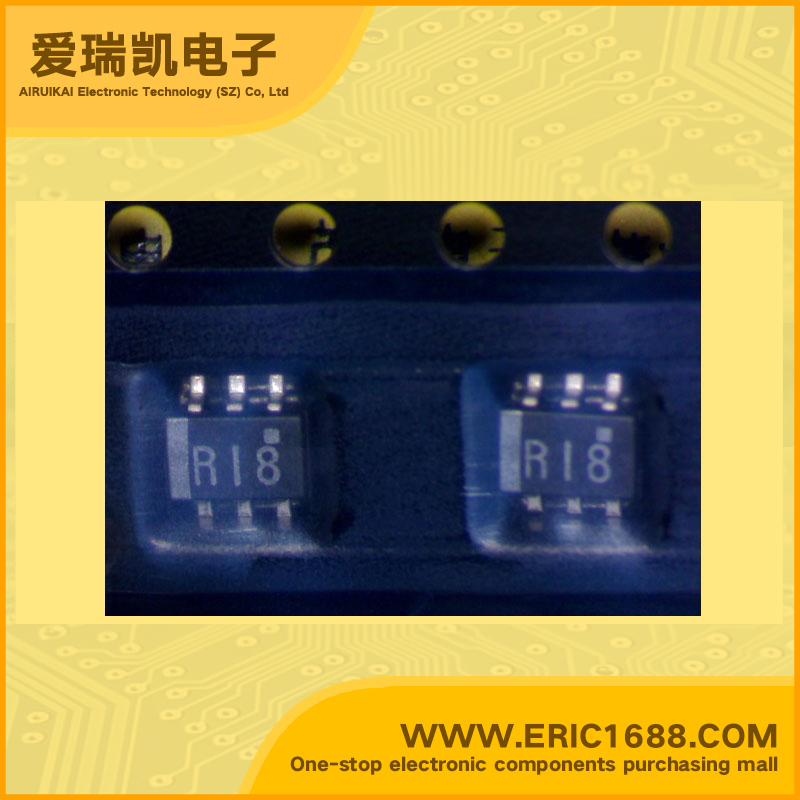

TK11218CM LDO电压调整器/稳压电源IC 1.8V 260mV/0.26V 带使能脚EN/CE SOT23L-6 marking/标记 R18 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 16V |
| 输出电压VOUTVoltage - Output | 1.8V |
| 输出电流IoCurrent - Output | 150mA/0.15A |
| 最大压降VDOVoltage - Dropout | 260mV/0.26V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | 600mW/0.6W |
| Description & Applications | VOLTAGE REGULATOR WITH ON/OFF SWITCH •High Voltage Precision at ± 2.0% •Active High On/Off Control •Very Low Dropout Voltage 80 mV at 30 mA •Very Low Noise •Very Small SOT-23L or SOT-89 Surface Mount Packages •Internal Thermal Shutdown •Short Circuit Protection •Battery Powered Systems •Cellular Telephones •Pagers •Personal Communications Equipment •Portable Instrumentation •Portable Consumer Equipment •Radio Control Systems •Toys •Low Voltage Systems |
| 描述与应用 | ON/ OFF开关稳压器， •高电压精度为±2.0％ •高电平开/关控制 非常低压差电压80毫伏，在30 mA •非常低的噪声？ •非常小的SOT-23L或SOT-89表面贴装封装 •内部热关断 •短路保护 •电池供电系统 •蜂窝电话 •寻呼机 •个人通讯设备 •便携式仪表 •便携式消费电子设备 •无线控制系统 •玩具 •低电压系统 |
| 规格书PDF |
