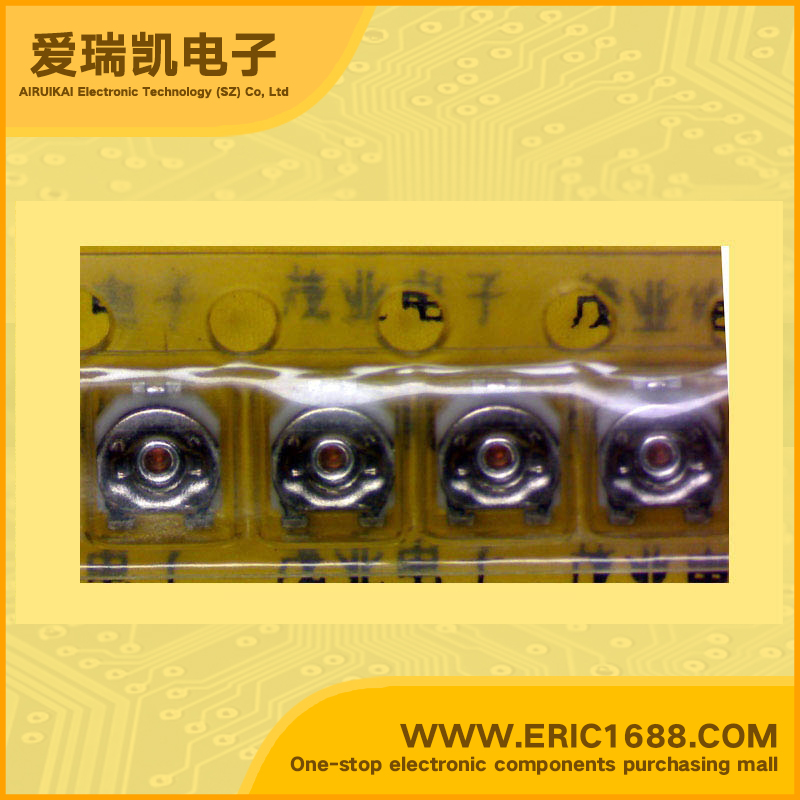

表面贴装微调电位器（金属玻璃型）TMC3K-B200KTR 200KΩ/Ohm 3X3-200K
| 电阻值Resistance | 200KΩ/Ohm |
| 额定功率Power | 0.1W,1/10W |
| 容差Tolerance | ±25% |
| 温度系数Temperature Coefficient | ±250ppm/°C |
| 圈数Number of Turns | 单圈 Single |
| 调节类型Adjustment Type | 顶部调节 Top Adjustment |
| 端子类型Termination Style | J引线 J Lead |
| Description & Applications | Surface Mount Trimmer Potentiometer (Metal-glazed Type) FEATURES 1. Space Saving Size 2. Easily adjusts with standard screwdriver. 3. Metal-glaze resistance element gives excellent stability and protection against environmental factors. 4. Can be mounted to a circuit board with adhesive. 5. Designed for reflow soldering. 6. Supplied in 8mm tape for automatic assembly equipment. APPLICATIONS CAMERA built-in VCR, 8mm VCR, VCR camera, still camera, headphone stereos, LCD television, disk drive, bar code equipments, rader detectors, hand held equipments. |
| 描述与应用 | 表面贴装微调电位器（金属玻璃型） 特点 1。节省空间的大小 2。轻松调整标准螺丝刀。 3。金属釉电阻元件提供出色的稳定性和防止环境因素。 4。可被安装到电路板用粘合剂。 5。专为回流焊接。 6。在8mm磁带提供自动装配设备。 应用 摄像头内置录像机，8mm的录像机，录像机摄像机，静态相机，立体声耳机，液晶电视（LCD），磁盘驱动器，条码设备，宁可探测器，手持设备。 |
| 规格书PDF |
