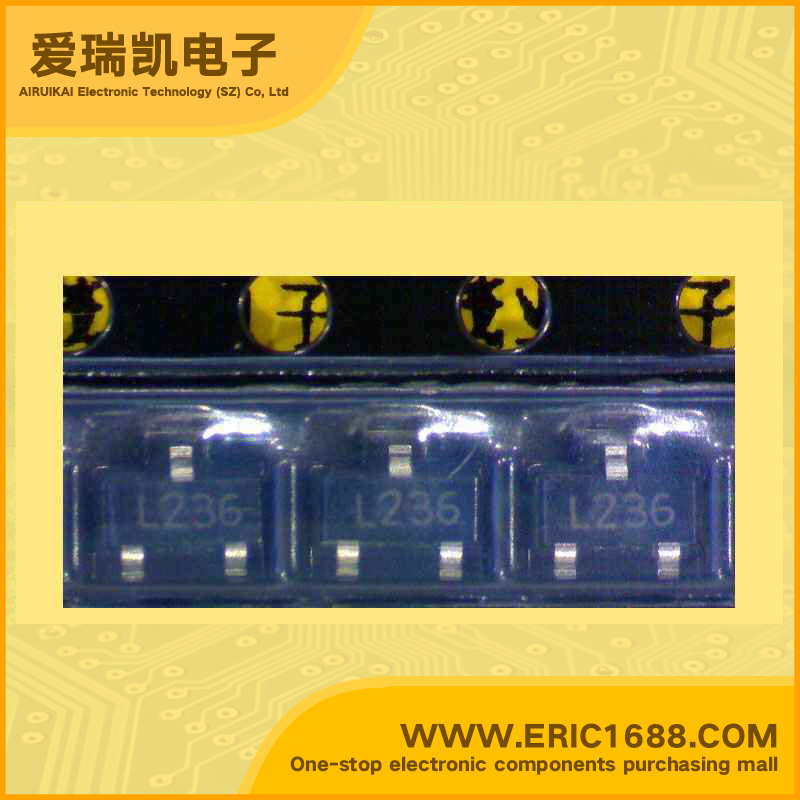

TS432AILT 电压基准电源IC 1.24 V ~ 10 V SOT-23 marking/标记 L236 可调并联型电压基准
| 参考类型Reference Type | 旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压VoVoltage - Output | 1.24 V ~ 10 V |
| 误差Tolerance | ±0.5% |
| 温度系数Temperature Coefficient | 100ppm/°C |
| 输入电压Voltage - Input | 1.24 V ~ 10 V |
| 阴极电流Current - Cathode | 60µA |
| 输出电流IOUTCurrent - Output | 12mA |
| Description & Applications | FEATURES • 1.24V ADJUSTABLE SHUNT VOLTAGE REFERENCE • ULTRA LOW OPERATING CURRENT : 60µA maximum at 25°C • HIGH PRECISION @ 25°C +/- 1% +/- 0.5% • HIGH STABILITY WHEN USED WITH CAPACITIVE LOADS • INDUSTRIAL TEMPERATURE RANGE:-40 to +85°C • 100ppm/°C TEMPERATURE COEFFICIENT Applications • Computers • Instrumentation • Battery chargers • Switch mode power supply • Battery operated equipments |
| 描述与应用 | 特点 •1.24V可调并联型电压基准 •超低工作电流：60μA最大在25°C •高精度@ 25°C + / - 1％+/ - 0.5％ •使用容性负载时的高稳定性 •工业温度范围：-40至+85°C •100PPM /°C温度系数 应用 •电脑 •仪表 •电池充电器 •开关模式电源 •电池供电设备 |
| 规格书PDF |
