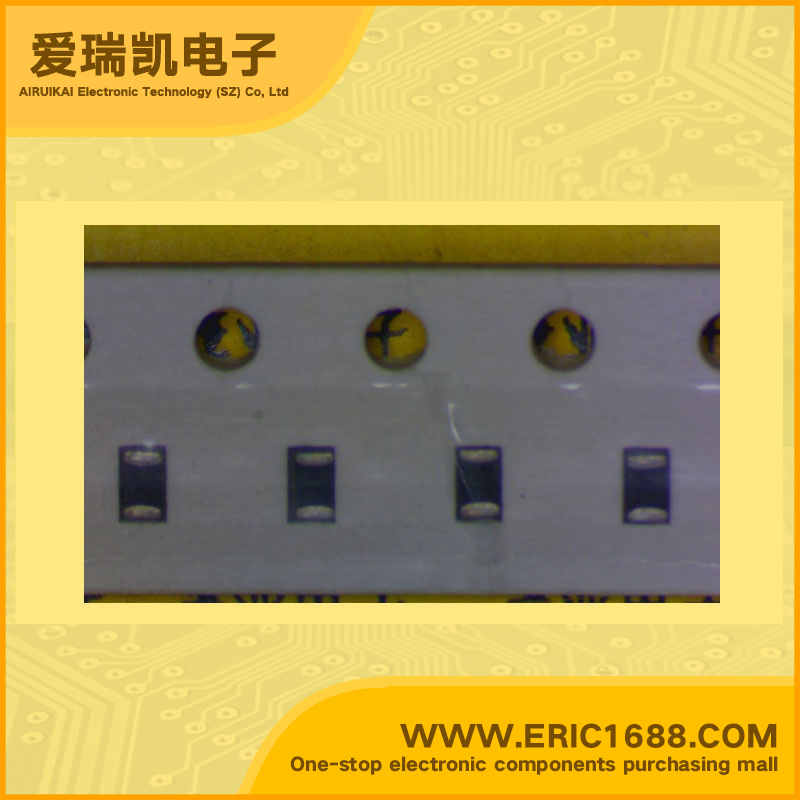

热敏电阻 TSM1A473F953R 47KΩ 0603-47K
| 电阻值(25℃)Resistance in Ohms @ 25°C | 47KΩ |
| 电阻容差Resistance Tolerance | 1% |
| B 值容差B Value Tolerance | |
| B0/50 | |
| B25/50 | |
| B25/75 | |
| B25/85 | 3950K |
| B25/100 | |
| 功耗Power Dissipation | 210mW |
| Description & Applications | 1. EIA size 0402, 0603, 0805, 1206 2. Highly reliable monolithic structure 3. -40 ~ +125 operating temperature range 4. Wide resistance range 5. Cost effective Recommended applications 1. Battery pack 2. Mother board/notebook PC 3. Liquid crystal display 4. Cellular phones |
| 描述与应用 | 1。EIA尺寸0402，0603，0805，1206 2。高度可靠的单片结构 3。 -40〜+125℃的工作温度范围 4。阻值范围宽 5。成本效益 推荐应用 1。电池组 2。主板/笔记本电脑 3。液晶显示 4。蜂窝电话 |
