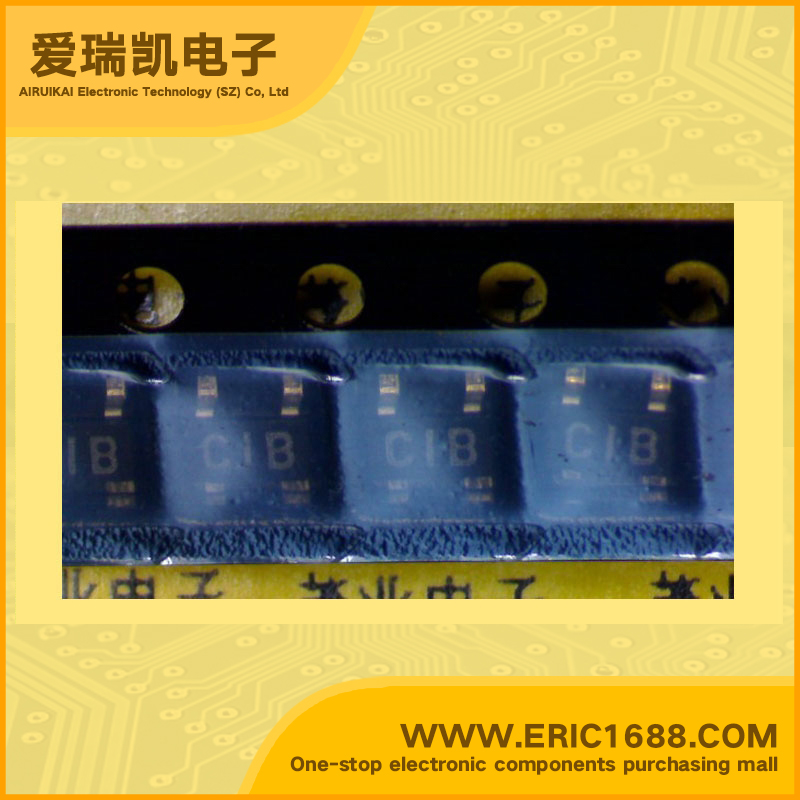

射频放大器 UPC1676G SOT-143 marking/标记 C1B
| 频率Frequency | 1.2GHz |
| P1dB | |
| 增益Gain | 22dB |
| 噪声系数Noise Figure | 4.5dB |
| RF 类型RF Type | |
| 电源电压Voltage - Supply | 5V |
| 电源电流Current - Supply | 19mA |
| 测试频率Test Frequency | |
| Description & Applications | FEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • Excellent frequency response : 1.2 GHz TYP.@ 3 dB down below flat gain. • High power gain : 22 dB TYP. @ f = 0.5 GHz. • High isolation. • Super small package. • Uni- and low voltage operation : VCC = 5 V • Input and output matching 50 Ω • GENERAL PURPOSE WIDE BNAD AMPLIFIER |
| 描述与应用 | 特点 •双极模拟集成电路 •优异的频率响应：1.2 GHz的TYP。@低3 dB增益平坦以下。 •高功率增益：22 dB（典型值）。 @ F =0.5千兆赫。 •高隔离。 •超小型封装。 •单向和低电压操作：VCC = 5 V •输入和输出匹配50Ω •通用宽BNAD放大器 |
| 规格书PDF |
