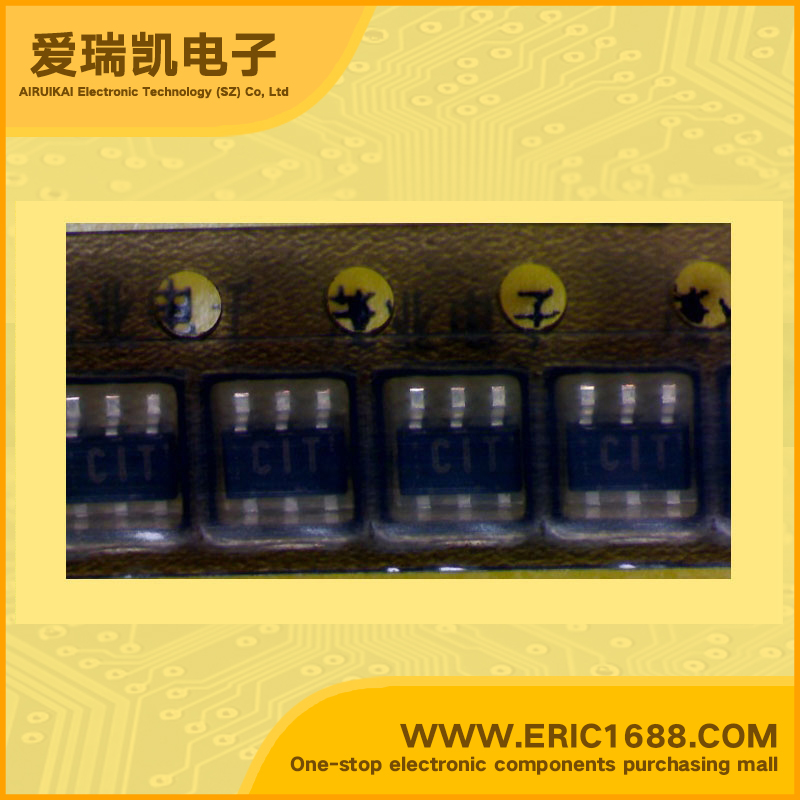

射频放大器 UPC2748T SOT-163 marking/标记 C1T
| 频率Frequency | 900MHz~1.5GHz |
| P1dB | |
| 增益Gain | 21dB |
| 噪声系数Noise Figure | 2.8dB~4dB |
| RF 类型RF Type | 手机 Cellular |
| 电源电压Voltage - Supply | 2.7V~3.3V |
| 电源电流Current - Supply | 4.5mA~8mA |
| 测试频率Test Frequency | 900MHz |
| Description & Applications | FEATURES • 3 V, 900 MHz LOW NOISE SI MMIC AMPLIFIER • 2.8 dB NOISE FIGURE • LOW VOLTAGE - LOW CURRENT: 6 mA at 3 V • LOW POWER CONSUMPTION: 18 mW TYP • SUPER SMALL PACKAGE • TAPE AND REEL PACKAGING OPTION AVAILABLE |
| 描述与应用 | 特点 •3 V，900兆赫SI MMIC低噪声放大器 •2.8 dB的噪声系数 •低电压 - 低电流：6毫安在3 V •低功耗：18 mW的典型 •超小包装 •磁带和卷轴包装可供选择 |
| 规格书PDF |
