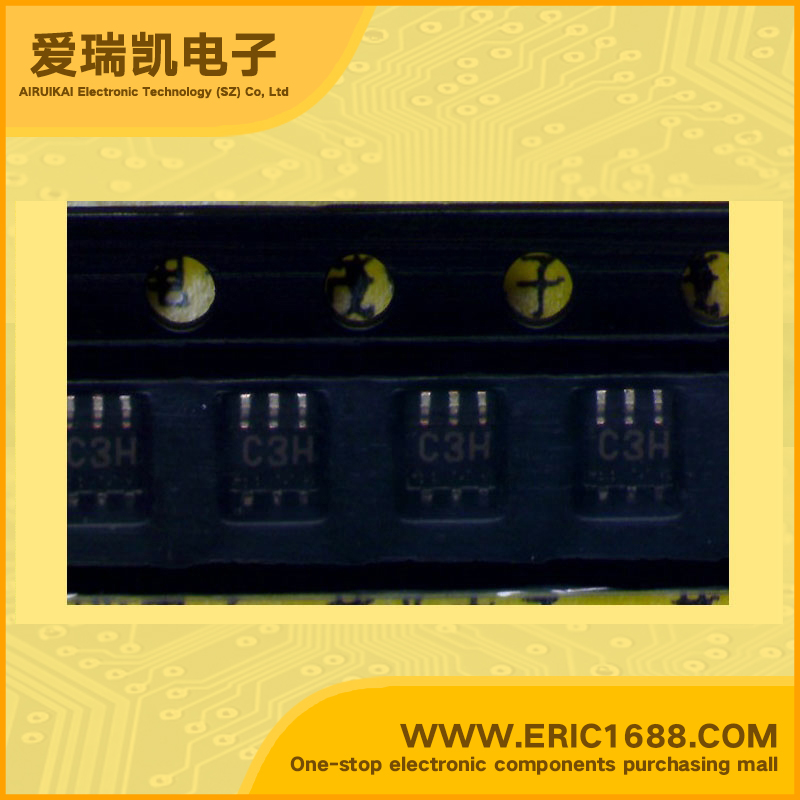

射频放大器 UPC3215TB SOT-363 marking/标记 C3H
| 频率Frequency | 2.5GHz~2.9GHz |
| P1dB | -4dBm/-1.5dBm |
| 增益Gain | 18.5dB~20.5dB |
| 噪声系数Noise Figure | 2.3dB~3dB |
| RF 类型RF Type | DBS |
| 电源电压Voltage - Supply | 4.5V~5.5V |
| 电源电流Current - Supply | 15mA~17.5mA |
| 测试频率Test Frequency | 1.5GHz |
| Description & Applications | FEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 5 V, SUPER MINIMOLD SILICON MMIC WIDEBAND AMPLIFIER • Wideband response : fu = 2.9 GHz TYP. @3 dB bandwidth • Noise figure : NF = 2.3 dB TYP. @f = 1.5 GHz • Power gain : GP = 20.5 dB TYP. @f = 1.5 GHz • Supply voltage : VCC = 4.5 to 5.5 V • High-density surface mounting: 6-pin super minimold package APPLICATION • Systems required wideband operation from HF to L band |
| 描述与应用 | 特点 •双极模拟集成电路 •5 V，超级迷你模具硅MMIC宽带放大器 •宽带响应：FU =2.9 GHz的TYP。 @3 dB带宽 •噪声系数：NF= 2.3 dB（典型值）。 @ F =1.5 GHz的 •功率增益：GP=20.5 dB典型值。 @ F =1.5 GHz的 •电源电压：VCC=4.5到5.5 V •高密度表面安装：6-pin超级迷你模具包 应用 •系统需要从HF到L波段的宽带操作 |
| 规格书PDF |
