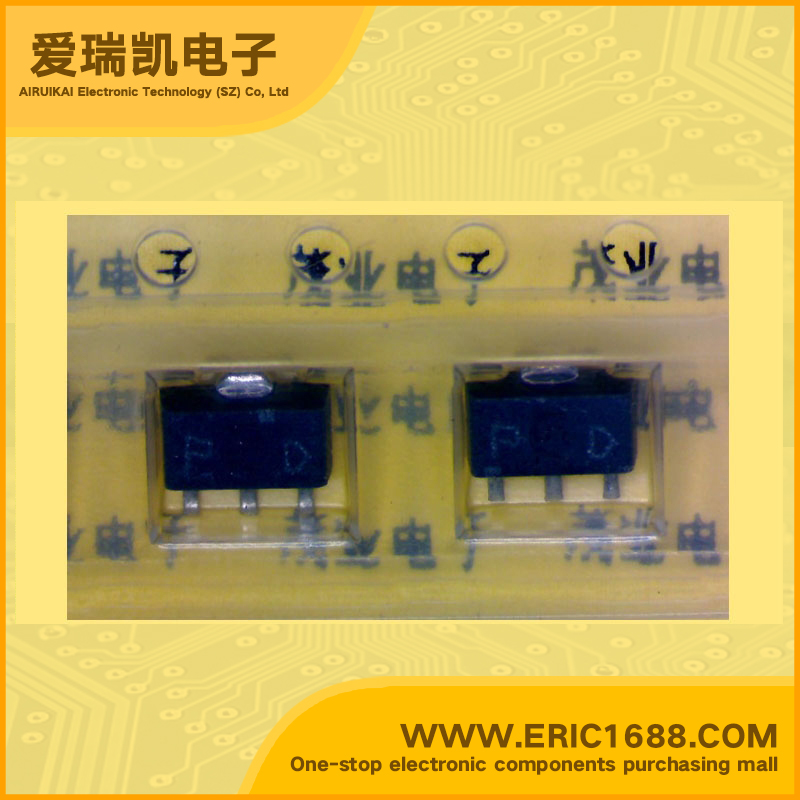

单向可控硅 URSF05G49-5P 0.8V 2mA SOT-89 marking/标记 PD
| 反向重复峰值电压VRRM/断态重复峰值电压VDRMRepetitive peak reverse voltage/Repetitive peak off-state voltage | 400V |
| 通态平均电流IT(AV)Average on-state current | 500mA |
| 通态最大电流IT(RMS)RMS on-state current | 800mA |
| 栅极触发电压VGTGate trigger voltage | 0.8V |
| 栅极触发电流IGTGate trigger current | 160μA |
| 保持电流IHHolding current | 2mA |
| 峰值通态电压VTMOn-state voltage | 1.5V |
| 重复峰值断态电流IDRMRepetitive peak off-state current | 10μA |
| 浪涌电流ITSM(50Hz、60Hz)Current - Non Rep. Surge 50, 60Hz (Itsm) | 9A/10A |
| Description & Applications | THYRISTOR SILICON PLANAR TYPE LOW POWER SWITCHING AND CONTROL APPLICATIONS Repetitive Peak Off−State Voltage : VDRM = 400V Repetitive Peak Reverse Voltage : VRRM = 400V Average On−State Current : IT (AV) = 500mA Reduce a Quantity of Parts and Manufacturing Process Because of Built−in RGK |
| 描述与应用 | 晶闸管硅平面型 小功率开关和控制应用 重复峰值断态电压：VDRM=400V 重复峰值反向电压VRRM= 400V 平均通态电流IT（AV）=500毫安 由于内置RGK减少了部件数量和制造工艺 |
| 规格书PDF |
