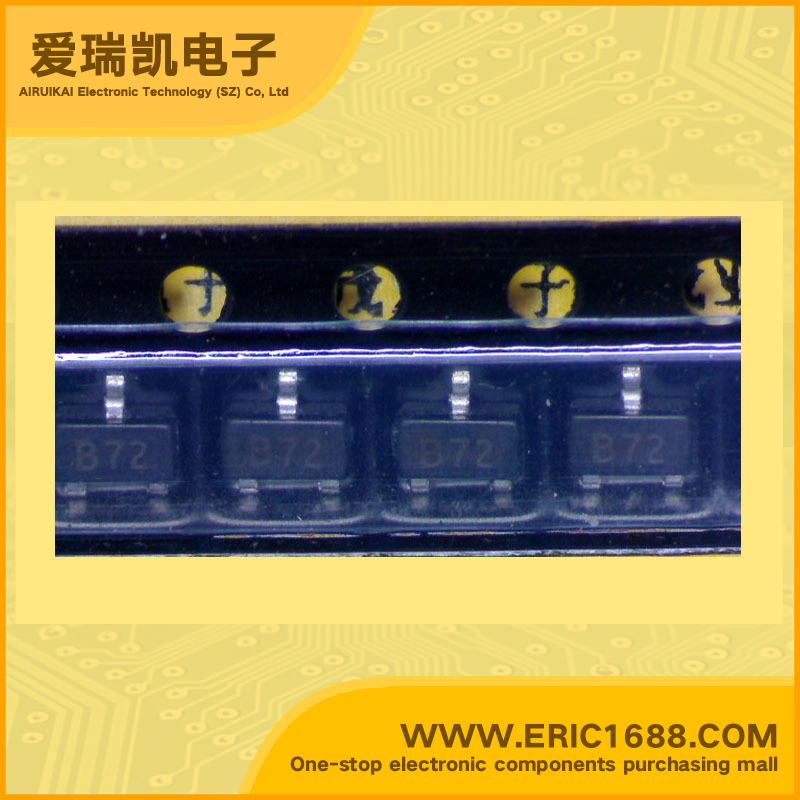

UTCB772SS PNP三极管 -40V -3A 80MHz 100~400 -500mV/-0.5V SOT-23 marking/标记 B72 音频功率放大器/DC-DC转换器/电压调节器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -40V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流ICCollector Current(IC) | -3A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~400 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 350mW/0.35W |
| Description & Applications | MEDIUM POWER LOW VOLTAGE TRANSISTOR DESCRIPTION The UTC B772SS is a medium power low voltage transistor, designed for audio power amplifier, DC-DC converter and voltage regulator. FEATURES * High current output up to 3A * Low saturation voltage * Complement to D882SS |
| 描述与应用 | 中功率低电压晶体管 说明 该UTC B772SS是一个中等功率低电压晶体管，设计的音频功率放大器，DC-DC转换器和电压调节器。 特点 *高电流输出高达3A *低饱和电压 *补充型D882SS |
| 规格书PDF |
