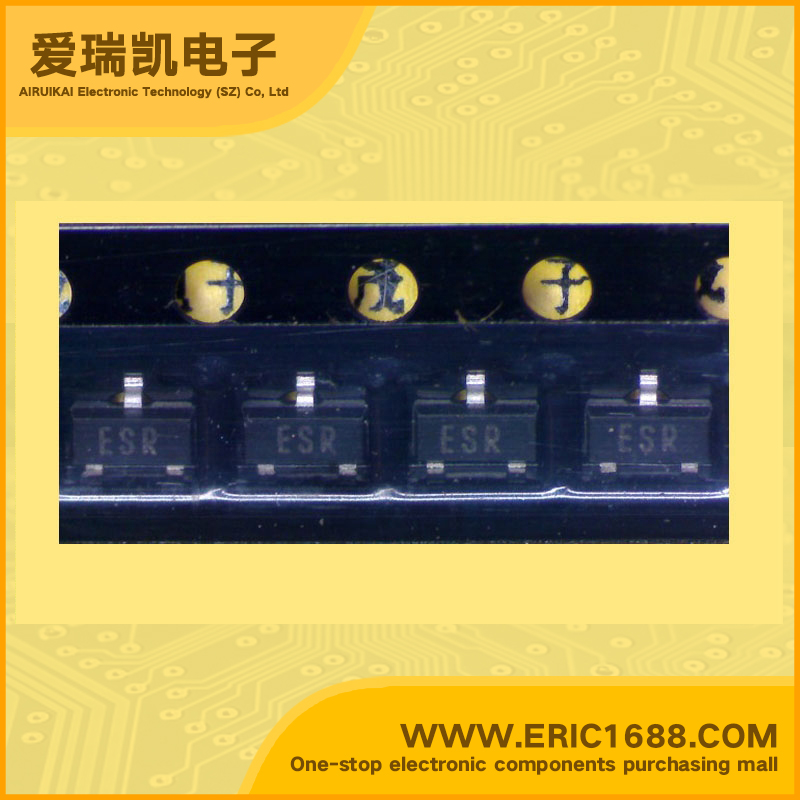

V6309SSP3B 电压检测器电源IC 2.93V SOT-23 marking/标记 ESR 超低功耗3-Pin电源上电复位IC
| 受检测电压数Number of Voltages Monitored | 1 |
| 检测电压/复位阈值电压VDETVoltage - Threshold | 2.93V |
| 工作电压VINVoltage - Supply | -0.3~6V |
| 高/低有效复位Reset | 低 Active Low |
| 输出类型Output Type | push pull |
| 看门狗Watchdog | 无 No |
| 功耗PdPower Dissipation | 320mW/0.32W |
| Description & Applications | •Ultra Low Power 3-Pin Power-On Reset IC •Precision monitoring of 3V, 3.3V and 5V power supply voltages •Fully specified over the temperature range of -40 to +125°C •140ms minimum power-on reset pulse width: •16 µA supply current •Guaranteed RESET/RESET valid to VDD = 1V •Power supply transient immunity •No external components needed |
| 描述与应用 | •Ultra Low Power 3-Pin Power-On Reset IC •Precision monitoring of 3V, 3.3V and 5V power supply voltages •Fully specified over the temperature range of -40 to +125°C •140ms minimum power-on reset pulse width: •16 µA supply current •Guaranteed RESET/RESET valid to VDD = 1V •Power supply transient immunity •No external components needed |
| 规格书PDF |
