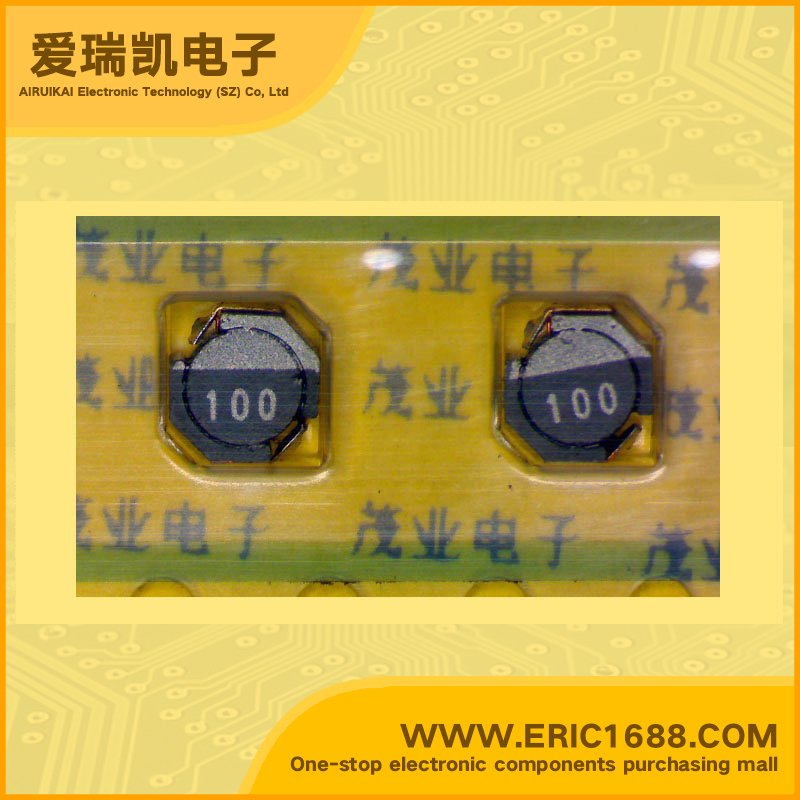

功率电感 VLF4012AT-100MR79 10uH 4M-100
| Q值Q Value | |
| 电感值Inductance | 10uH |
| 误差Tolerance | ±20% |
| 额定电流Current Rating | 790mA |
| 饱和电流Current - Saturation | |
| DC电阻DCRDC Resistance (DCR) | 0.3Ω/Ohm |
| Description & Applications | FEATURES • Mount area: 3.5*3.7mm Low profile: 1.2mm max. height • Generic use for portable DC to DC converter line. • High magnetic shield construction should actualize high resolution for EMC protection. • Available for automatic mounting in tape and real package. • The products contain no lead and also support lead-free soldering. • It is a product conforming to RoHS directive. APPLICATIONS Power souce inductor for mobile devices such as mobile phones, HDDs, and DSCs |
| 描述与应用 | 特点 •安装面积：3.5*3.7毫米 低姿态：1.2mm最大。高度 •通用使用便携式DC-DC转换线。 •高磁屏蔽结构，分辨率高 EMC保护。 •可在磁带和真正的包进行自动安装。 •该产品不含有铅和支持无铅 焊接。 •它是一个产品，符合RoHS指令。 应用 烃源功率电感器为移动设备，如移动电话， 硬盘驱动器，数码相机 |
| 规格书PDF |
