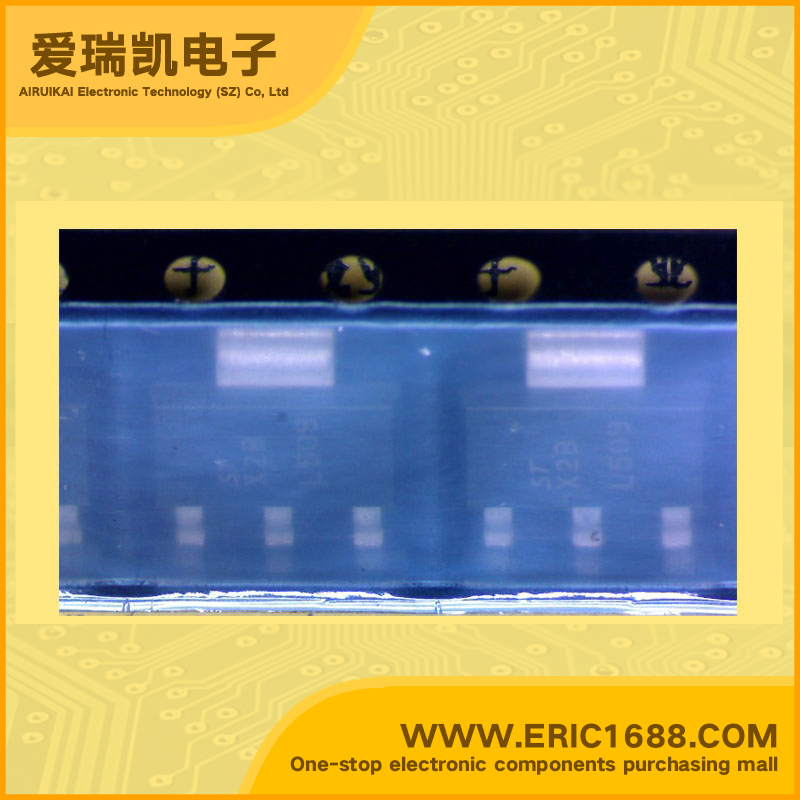

单向可控硅 X0202BN5BA4 0.8V 5mA SOT-223 marking/标记 X2B

热销商品

产品描述
反向重复峰值电压VRRM/断态重复峰值电压VDRMRepetitive peak reverse voltage/Repetitive peak off-state voltage600V-800V
通态平均电流IT(AV)Average on-state current0.8A
通态最大电流IT(RMS)RMS on-state current1.25A
栅极触发电压VGTGate trigger voltage 0.8V
栅极触发电流IGTGate trigger current200μA
保持电流IHHolding current 5mA
峰值通态电压VTMOn-state voltage1.45V
重复峰值断态电流IDRMRepetitive peak off-state current 5μA
浪涌电流ITSM(50Hz、60Hz)Current - Non Rep. Surge 50, 60Hz (Itsm)25A
Description & ApplicationsHighly sensitive triggering levels for all applications where the available gate current is limited,such as: ground fault circuit interruptors, overvoltage crowbar protection in low power supplies,capacitive ignition circuits Available in though-hole or surface-mount packages, these devices are optimized in forward voltage drop and inrush current capabilities, for reduced power losses and high reliability in harsh environments
描述与应用高度敏感的触发水平 用于栅极电流被限制的应用程序,如:接地故障电路断续器,低功率电源的过压保护电路,电容式点火电路 通孔或表面贴装封装可行,这些器件的正向压降和浪涌电流能力经过优化,降低了功率损耗,在恶劣环境中有着高可靠性
