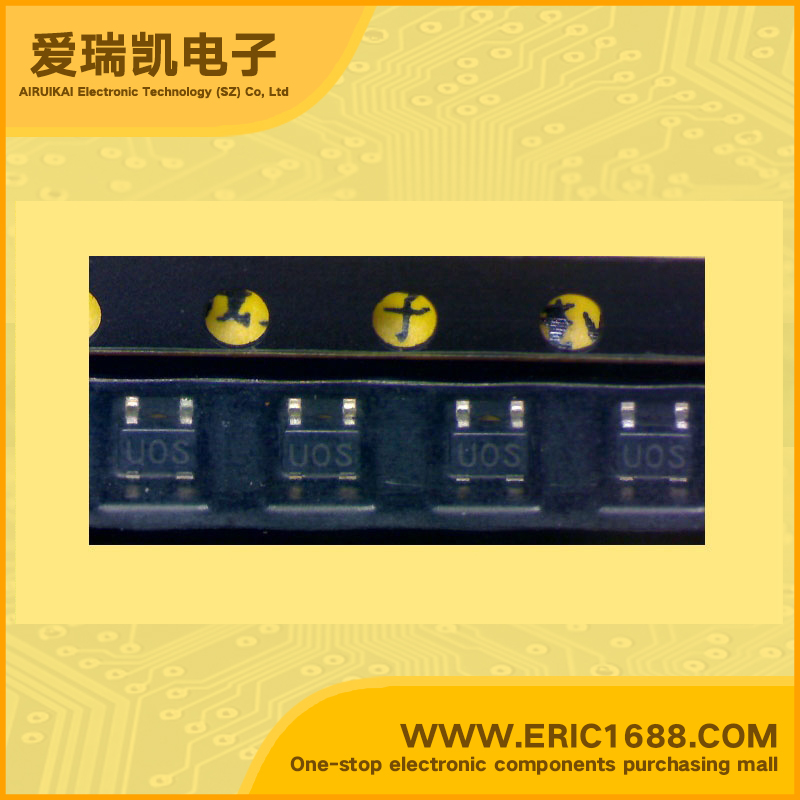

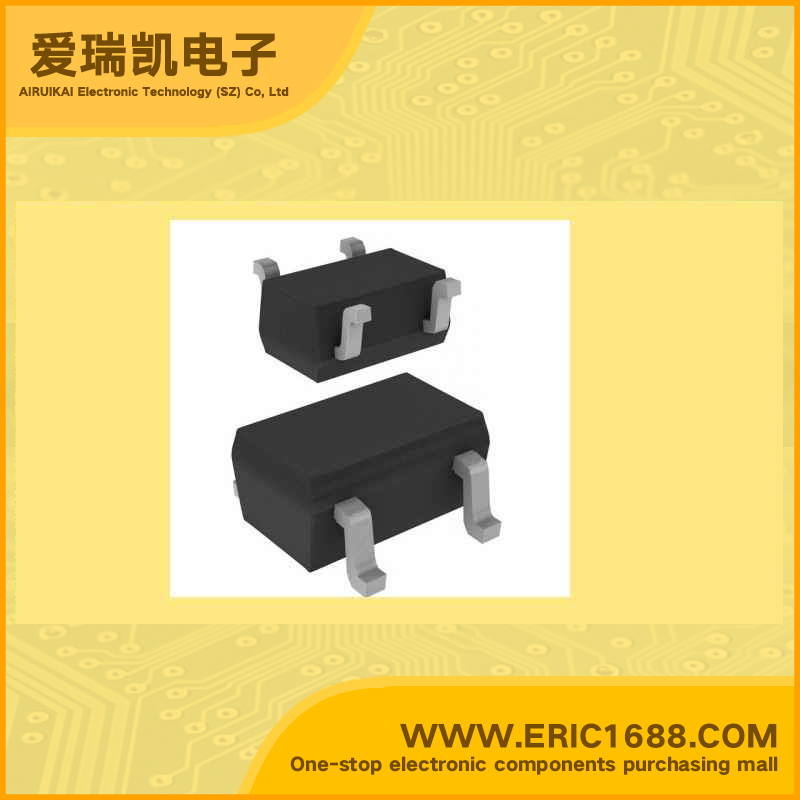

XC6215B312NRW LDO电压调整器/稳压电源IC 3.1V 320mV/0.32V 带使能脚EN/CE SOT-343/SSOT-24 marking/标记 UO 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | -0.3~7V |
| 输出电压VOUTVoltage - Output | 3.1V |
| 输出电流IoCurrent - Output | 100mA/0.1A |
| 最大压降VDOVoltage - Dropout | 320mV/0.32V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | 250mW/0.25W |
| Description & Applications | •0.8μA Low Power Consumption Voltage Regulator with ON/OFF Switch •Maximum Output Current : 200mA (300mA Limit, TYP.) @ VOUT=3.0V, VIN=4.0V •Dropout Voltage : 320mV @ IOUT = 100mA @ VOUT = 3.0V •Operating Input Voltage : 1.5V ~ 6.0V •Output Voltage Range : 0.9V ~ 5.0V (0.1V Increments) •Highly Accurate : Set voltage accuracy ±2% (1.5V |
| 描述与应用 | •0.8μA低功耗电压稳压器具有ON / OFF开关 •最大输出电流：200mA（极限电流300mA，TYP。） @ VOUT= 3.0V，VIN=4.0V •漏失电压：320mV@100mA时IOUT= @ VOUT=3.0V •输入工作电压：1.5V〜6.0V •输出电压范围：0.9V〜5.0V（0.1V为单位） •高精度：设定电压精度±2％ （1.5V |
| 规格书PDF |
