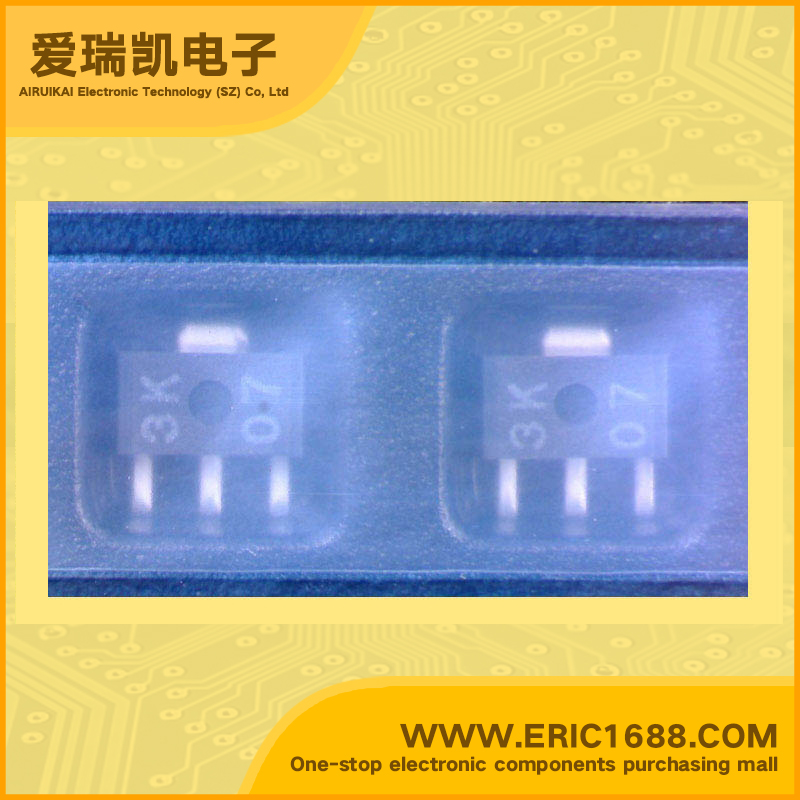

XC62AP3702PR LDO电压调整器/稳压电源IC 3.7V 380mV/0.38V SOT-89 marking/标记 3K 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 12V |
| 输出电压VOUTVoltage - Output | 3.7V |
| 输出电流IoCurrent - Output | 200mA/0.2A |
| 最大压降VDOVoltage - Dropout | 380mV/0.38V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | 500mW/0.5W |
| Description & Applications | •Positive Voltage Regulators •Maximum Output Current: 250mA •(within max. power dissipation, VOUT = 5.0V) •Output Voltage Range: 2.0V ~ 6.0V in 0.1V increments (1.5V ~ 1.9V for custom products) •Highly Accurate: Output voltage ±2% (±1% for semi-custom products) •Low Power Consumption: Typ. 2.0µA @ VOUT=5.0V •Output Voltage Temperature Characteristics: Typ. ±100ppm/°C •Input Stability : Typ. 0.2%/ •Small Input-Output Differential: IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential. |
| 描述与应用 | •正电压稳压器 •最大输出电流：250mA •（最大功耗，VOUT=5.0V） •输出电压范围：2.0V〜6.0V，0.1V增量 （1.5V〜1.9V定制产品） •高精度：±2％的输出电压 （±1％的半定制产品） •低功耗：典型。 2.0μA@ VOUT= 5.0V •输出电压温度特性：类型。温度系数±100ppm/°C •输入稳定性：类型。 0.2％/ •小输入 - 输出电压差：IOUT= 100毫安@ VOUT=5.0V与 0.12V的差分。 |
| 规格书PDF |
