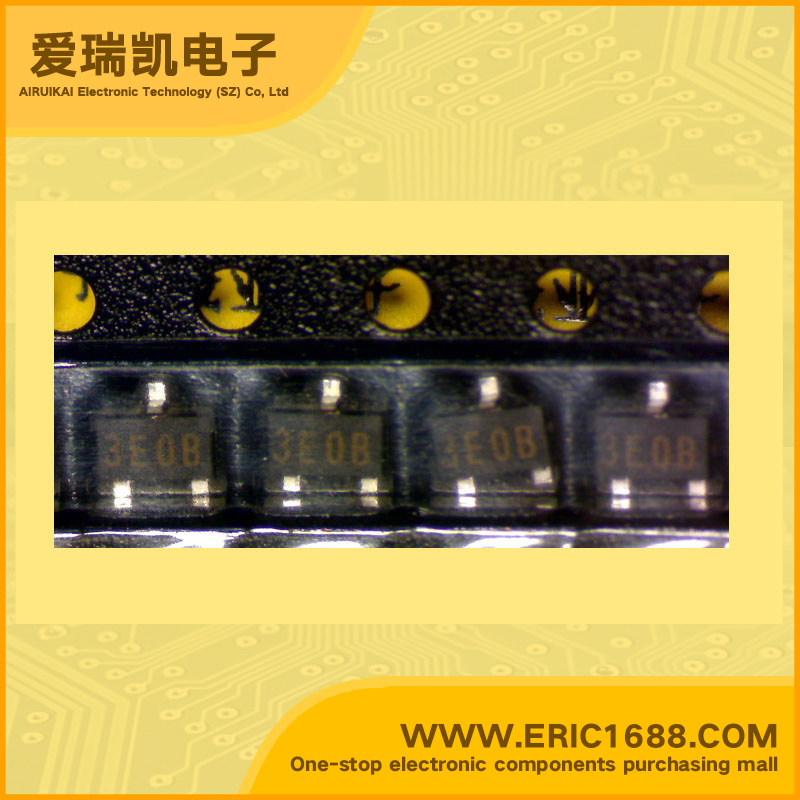

XC62FP3402MR LDO电压调整器/稳压电源IC 3.4V SOT-23 marking/标记 3E 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 12V |
| 输出电压VOUTVoltage - Output | 3.4V |
| 输出电流IoCurrent - Output | |
| 最大压降VDOVoltage - Dropout | |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | 150mW/0.15W |
| Description & Applications | •Positive Voltage Regulators •Maximum Output Current: 250mA (within max. power dissipation, VOUT = 5.0V) •Output Voltage Range : 2.0V ~ 6.0V in 0.1V increments (1.5V ~ 1.9V for custom products) •Highly Accurate: Output voltage ±2% (±1% for semi-custom products) •Low Power Consumption : Typ. 2.0µA @ VOUT=5.0V •Output Voltage Temperature Characteristics : Typ. ±100ppm/°C •Input Stability : Typ. 0.2%/V •Small Input-Output Differential : IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential |
| 描述与应用 | •正电压稳压器 •最大输出电流：250mA （在最大功耗，VOUT=5.0V） •输出电压范围 ：2.0V〜6.0V，0.1V增量 （1.5V〜1.9V定制产品） •高精度：±2％的输出电压 （±1％的半定制产品） •低功耗 类型： 2.0μA@ VOUT= 5.0V •输出电压的温度特性 类型：温度系数±100ppm/°C •输入稳定性：类型。 0.2％/ V •小输入输出差分 ：@ I OUT=100mA时VOUT= 5.0V与0.12V的差分 •CMOS低功耗 |
| 规格书PDF |
