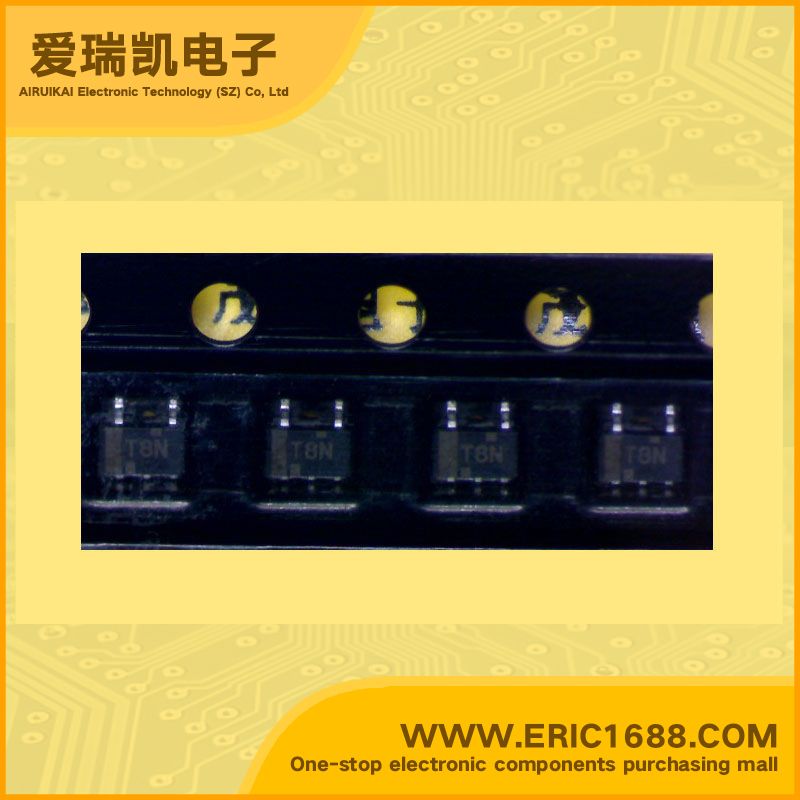

集成电路IC 异或门 XC74UL86AANR SOT-353/SSOT-25/SC-88A marking/标记 T8N
| 逻辑类型Logic Type | 异或门 XOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2v~5.5v |
| 静态电流IqCurrent - Quiescent (Max) | 1µA |
| 输出高，低电平电流Current - Output High, Low | -20mA,20mA |
| 低逻辑电平Logic Level - Low | 0.5v~1.5v |
| 高逻辑电平Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 3ns @ 5V，50pF |
| Description & Applications | High Speed Operation : tpd = 3.1ns (TYP.) Operating Voltage Range : 2V ~ 5.5V Low Power Consumption : 1μA (MAX.) CMOS 2-Input Exclusive-OR Gate Ultra Small Packages : SSOT-25, SON-6* |
| 描述与应用 | 高速操作：TPD =3.1ns（典型值） 工作电压范围：2V〜5.5V 低功耗：1μA（最大值） CMOS 2输入异或门 超小型封装SSOT-25，SON-6 * |
| 规格书PDF |
