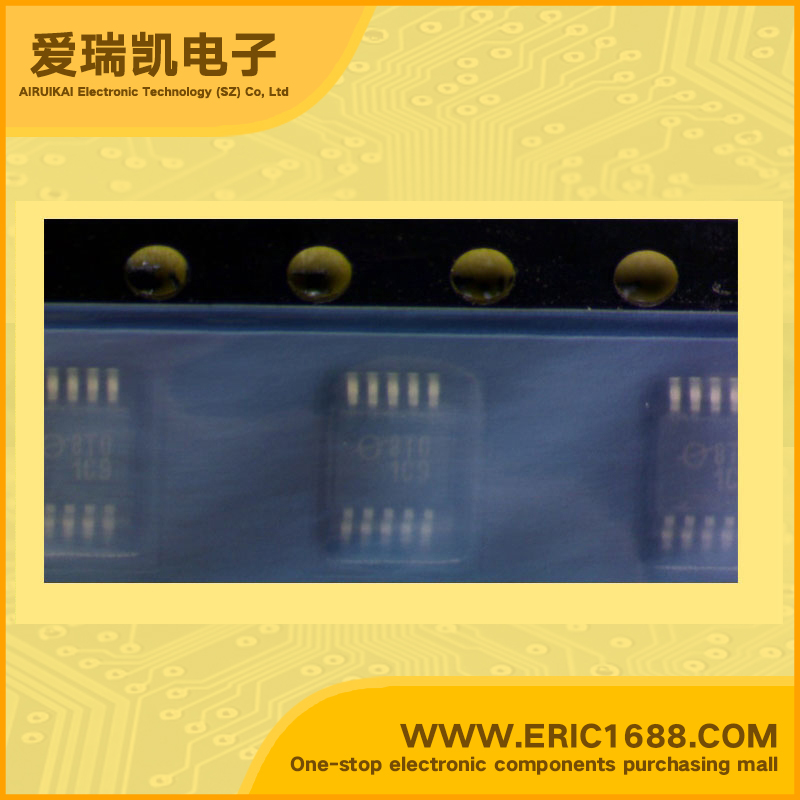

XC9509A01CAR DC/DC降压转换电源IC 0.9~4V MSOP-10/USP-10 同步降压DC/DC转换器
| 控制方式MODE | PWM/PFM |
| 输入电压VINInput Voltage | 2~6V |
| 输出电压VOUTOutput Voltage | 0.9~4V |
| 输出电流IOUTOutput Current | 600mA |
| 震荡频率FOSCOscillation Frequency | 1200KHZ |
| 内置FETBuilt-in FET | PMOS/NMOS |
| Description & Applications | Synchronous Step-Down DC/DC Converter with Built-In LDO Regulator in Parallel Plus Voltage Detector •Input Voltage Range : 2.4V ~ 6.0V •Low ESR Capacitor : Ceramic capacitor compatible •VD Function : Sense internally either VDD, DCOUT, or VROUT. N-ch open drain output •Small Package : MSOP-10, USP-10 • |
| 描述与应用 | 同步降压DC/ DC转换器 内置LDO稳压器，并行加电压检测 •输入电压范围：2.4V〜6.0V •低ESR电容器陶瓷电容器兼容 •VD功能：内部是VDD，DCOUT或VROUT感。 N-ch开漏输出 •小包装：MSOP-10，USP-10 • |
| 规格书PDF |
