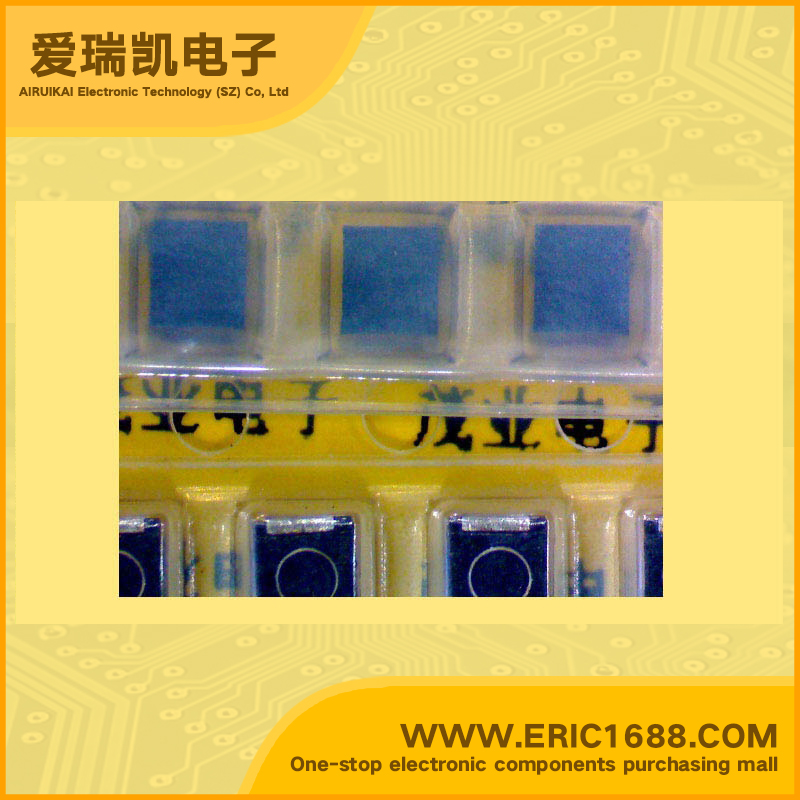

小功率电感 NLFV25T-150K-PF 15UH 2520-150K
| 电感值Inductance | 15UH |
| 误差Tolerance | ±10% |
| 额定电流Current Rating | 130mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 10 @ 2.52MHz |
| 自振谐频率SRFFrequency - Self Resonant | 28MHz |
| DC电阻DCRDC Resistance (DCR) | 0.75Ω/Ohm |
| 屏蔽Shielding | 屏蔽 Shielded |
| Description & Applications | NLFV Series NLFV25 FEATURES The product has good heat durability that withstands lead-free compatible reflow soldering conditions. Lead-free material is used for the plating on the terminal. The product uses metal terminals, which realize excellent connection reliability. From 1µH to 100µH, all of the products are available in the E-6 series. This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available. |
| 描述与应用 | NLFV系列NLFV25 特点 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料可在终端上的电镀。 该产品采用金属终端，实现优异的连接可靠性。 本产品符合RoHS指令。不包括豁免条例的其他产品的规格也可提供。 |
| 规格书PDF |
