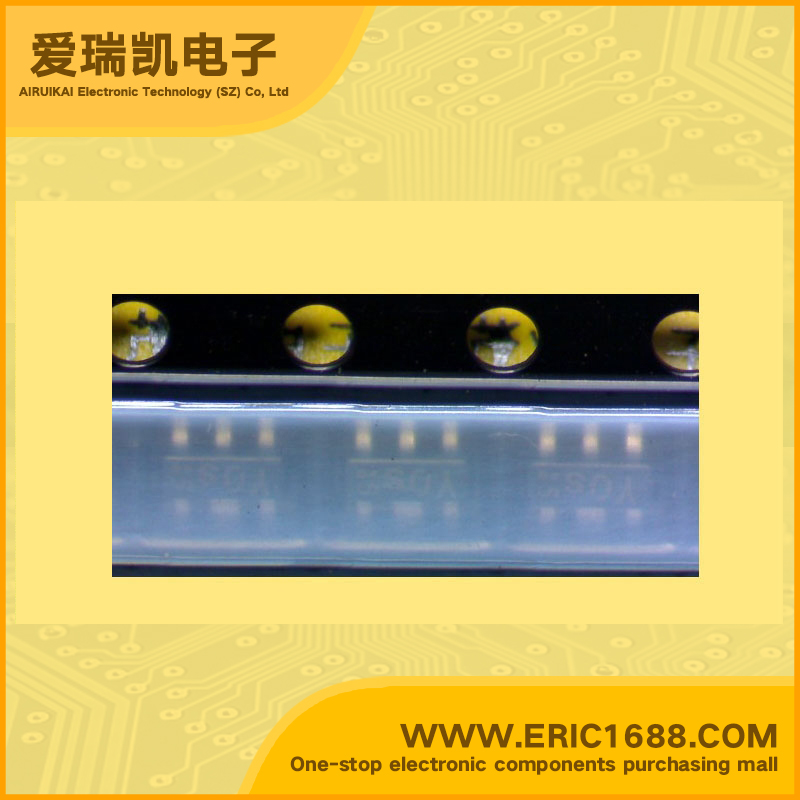

射频放大器 CGY121B SOT
| 频率Frequency | 900MHz |
| P1dB | 16dBm |
| 增益Gain | 19.5dB |
| 噪声系数Noise Figure | |
| RF 类型RF Type | |
| 电源电压Voltage - Supply | 2.7~6 V |
| 电源电流Current - Supply | 70mA |
| 测试频率Test Frequency | |
| Description & Applications | FEATURES • Variable gain amplifier (MMIC-Amplifier) for mobile communication • Gain Control range over 50dB • Positive Control Voltage • 50Ω input and output matched • Low power consumption • Operating voltage range: 2.7 to 6 V • Frequency range 800 MHz ... 2.5 GHz |
| 描述与应用 | 特点 •可变增益放大器（MMIC放大器）的移动通信 •50dB以上的增益控制范围 •正控制电压 •50Ω输入和输出匹配 •低功耗 •工作电压范围：2.7〜6 V •频率范围800 MHz的... 2.5 GHz的 |
| 规格书PDF |
