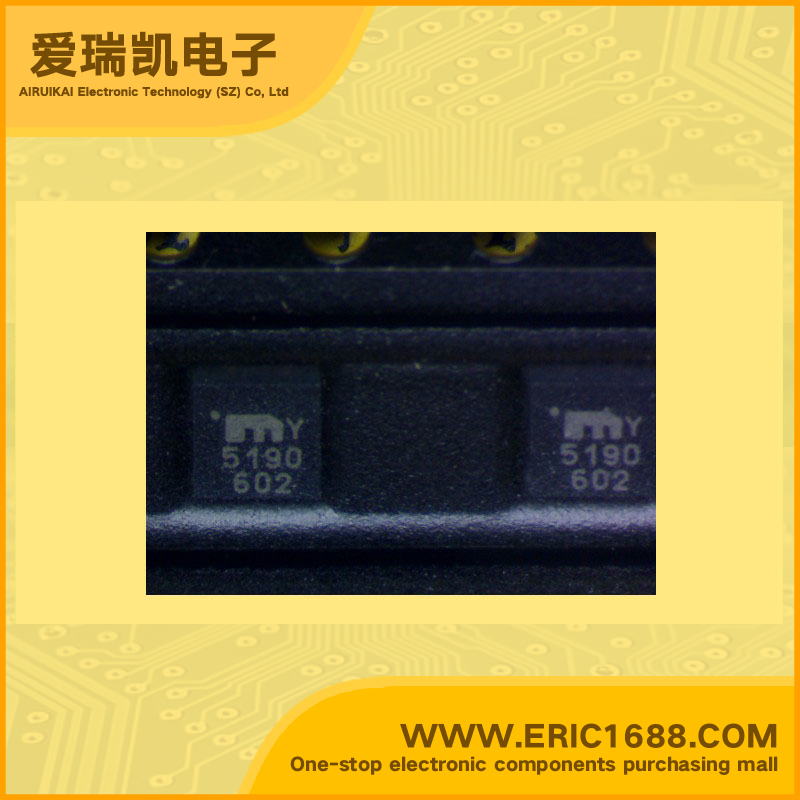

MIC5190YMLTR LDO电压调整器/稳压电源IC 可调/adj 25mV 带使能脚EN/CE 33D-10L/10MLF 3X3 marking/标记 MY5190 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 0.9~5.5V |
| 输出电压VOUTVoltage - Output | 可调/adj |
| 输出电流IoCurrent - Output | 10A |
| 最大压降VDOVoltage - Dropout | 25mV |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | Ultra High-Speed, High-Current Active Filter/LDO Controller ;• Input voltage range:VIN= 0.9V to 5.5V • +1.0% initial output tolerance • Dropout down to 25mV@10A • Filters out switching frequency noise on input • Very high large signal bandwidth >500kHz • PSRR >40dB at 500kHz • Adjustable output voltage down to 0.5V • Stable with any output capacitor • Excellent line and load regulation specifications • Logic controlled shutdown • Current limit protection • Available –40°C to +125°C junction temperature • Distributed power supplies • ASIC power supplies • DSP, µP, and µC power supplies |
| 描述与应用 | 超高速，大电流有源滤波器/ LDO控制器;•输入电压范围：VIN= 0.9V至5.5V •+1.0％初始输出容差 •降下来到25mV@10A •滤掉开关频率噪声对输入 •非常高的大信号带宽> 500千赫 •PSRR大于40dB在500kHz •可调输出电压下降到0.5V •与任何输出电容稳定 •出色的线路和负载调节规格 •逻辑控制关断 •电流限制保护 •提供-40°C至+125°C的结温 •分布式电源 •ASIC电源 •DSP，微处理器，微控制器和电源 |
| 规格书PDF |
