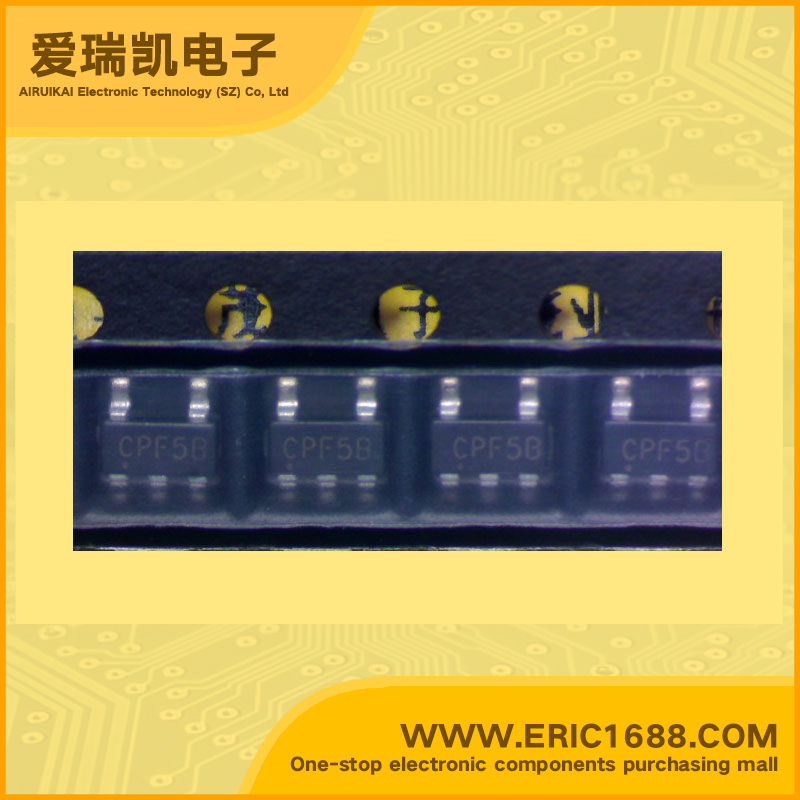

AAT3236IGV-2.7-T1 LDO电压调整器/稳压电源IC 2.7V 300mV/0.3V 带使能脚EN/CE SOT-153/SOT23-5 marking/标记 CPF 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 6V |
| 输出电压VOUTVoltage - Output | 2.7V |
| 输出电流IoCurrent - Output | 300mA/0.3A |
| 最大压降VDOVoltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | 526mW/0.526W |
| Description & Applications | 300mA CMOS High Performance LDO;•500mA Peak Output Current • Low Dropout - Typically 300mV at 300mA • Guaranteed 300mA Output • High Accuracy: ±1.5% • 100µA Quiescent Current • High Power Supply Ripple Rejection — 70dB at 1kHz — 50dB at 10kHz • Very Low Self Noise: 45µVrms • Noise Reduction Bypass Capacitor • Short-Circuit Protection • Over-Temperature Protection • Shutdown Mode for Longer Battery Life • Low Temperature Coefficient • Nine Factory-Programmed Output Voltages • SOT23 5-Pin or SC70JW 8-Pin Package • Cellular Phones • Notebook Computers • Personal Portable Electronics • Portable Communication Devices |
| 描述与应用 | 300mA的CMOS高性能LDO;•500mA峰值输出电流 •低压差 - 通常在300mA300mV的 •保证300mA输出 •高精度：±1.5％ •100μA静态电流 •高电源纹波抑制 - 1kHz时为70dB - 50分贝在10kHz •极低的自噪声：45μVRMS •降噪绕道电容 •短路保护 •过温保护 •关断模式，更长的电池寿命 •低温度系数 •九厂编程输出电压 •SOT235引脚SC70JW8引脚封装 •蜂窝电话 •笔记本电脑 •个人便携式电子产品 •便携式通信设备 |
| 规格书PDF |
