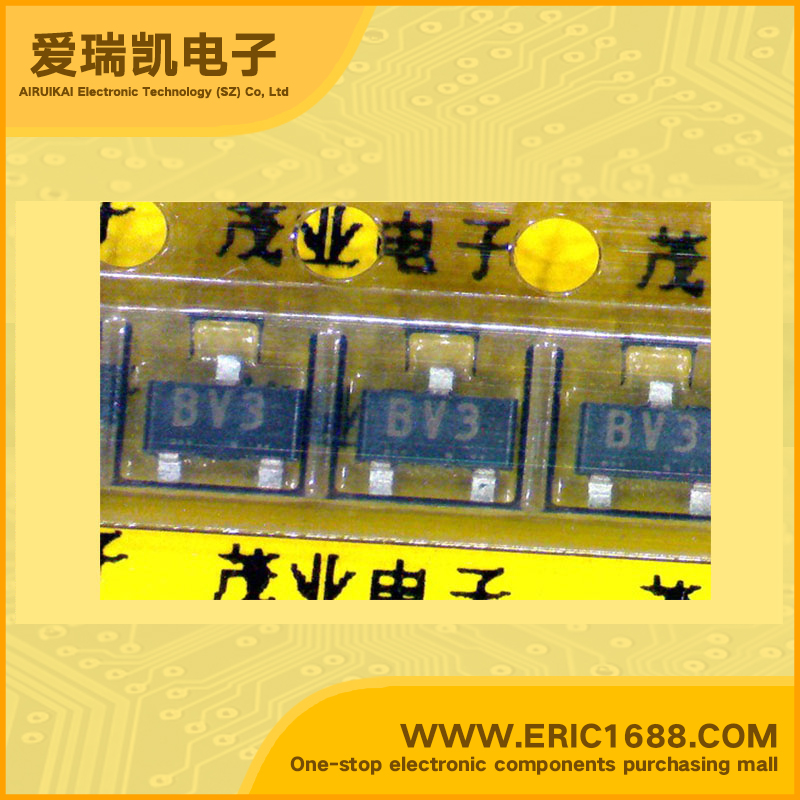

2SB624 PNP三极管 -30V -700mA/-0.7A 160MHz 170~270 -600mV/-0.6V SOT-23/SC-59 marking/标记 BV3 音频功放
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −25V |
| 集电极连续输出电流ICCollector Current(IC) | -700mA/-0.7A |
| 截止频率fTTranstion Frequency(fT) | 160MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 170~270 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −600mV/-0.6V |
| 耗散功率PcPoWer Dissipation | 200mW/0.2W |
| Description & Applications | PNP Silicon epitaxial planar transistor Audio frequency power amplifier Features • High DC gain • Micro package • Complements to 2SD596 |
| 描述与应用 | PNP硅外延平面晶体管 音频功放 特点 •高直流增益 •微型封装 •补充型2SD596 |
| 规格书PDF |
