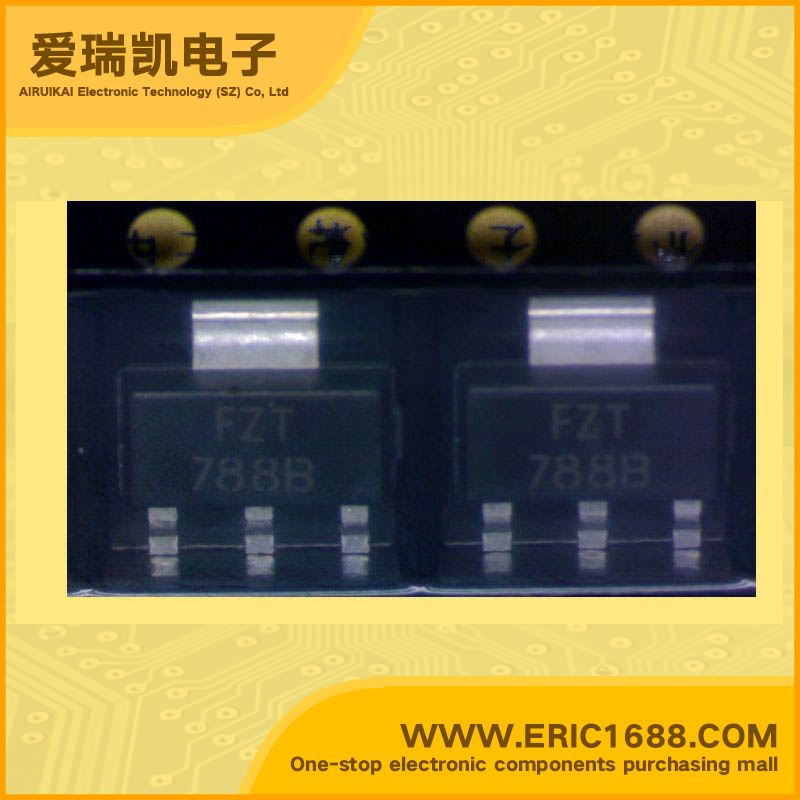

UFZT788BTC PNP三极管 -15V -3A 100MHz 500~1500 -500mV/-0.5V SOT-223 marking/标记 FZT788B 中功率高增益
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −15V |
| 集电极连续输出电流ICCollector Current(IC) | -3A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 500~1500 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 2W |
| Description & Applications | SOT223 PNP SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR FEATURES * Low equivalent on-resistance; APPLICATIONS * Battery powered circuits COMPLEMENTARY TYPE FZT688B |
| 描述与应用 | SOT223 PNP硅平面中功率高增益晶体管 特点 *低等效导通电阻; 应用 *电池供电电路 互补型FZT688B |
| 规格书PDF |
