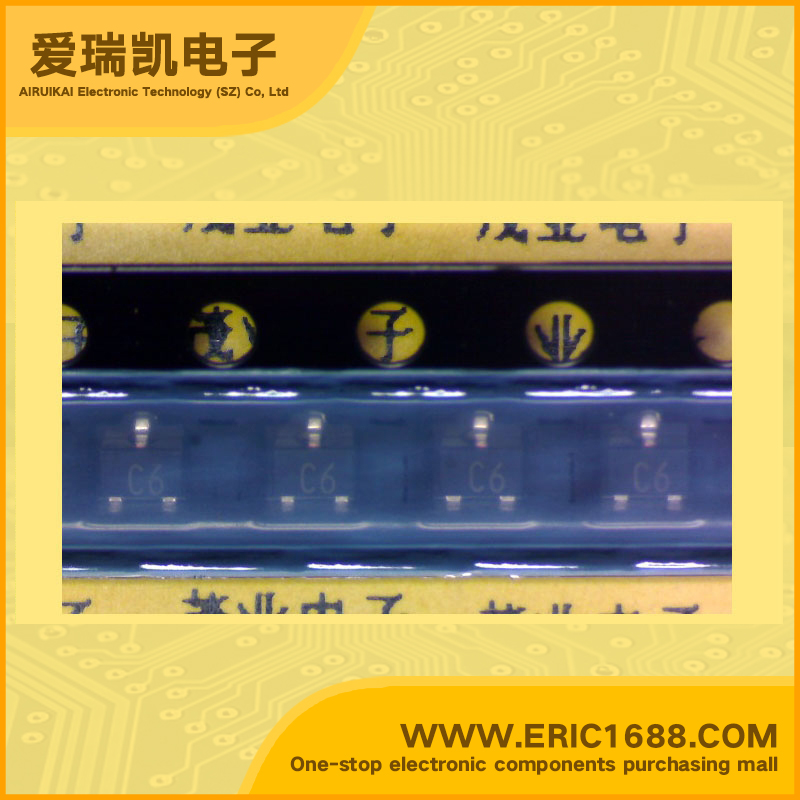

KTA2017-GR PNP三极管 -120V -100mA/-0.1A 100MHz 200~400 -300mV/-0.3V SOT-323/SC-70 marking/标记 C6 低噪声放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -120V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | -120V |
| 集电极连续输出电流ICCollector Current(IC) | −100mA/-0.1A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 200~400 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率PcPoWer Dissipation | 100mW/0.1W |
| Description & Applications | PNP epitaxial planar transistor LOW NOISE AMPLIFIER APPLICATION FEATURES High Voltage Excellent hFE Linearity High hFE Low Noise Complementary to KTC4077 |
| 描述与应用 | PNP外延平面晶体管 低噪声放大器应用 特点 高电压 优秀HFE线性 高HFE 低噪声 互补KTC4077 |
