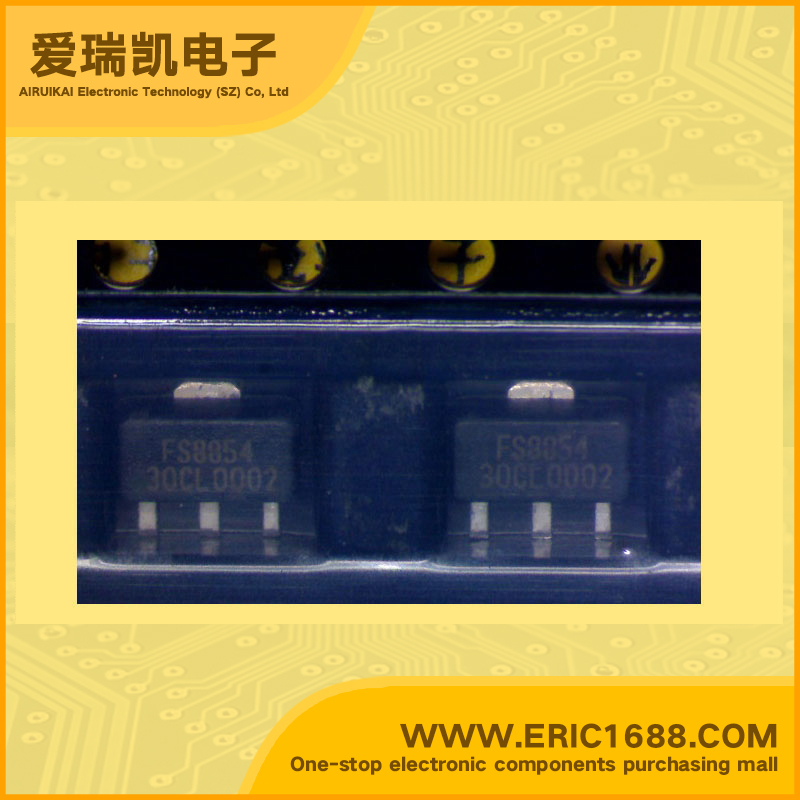

FS8854-30CL LDO电压调整器/稳压电源IC 3V 500mV/0.5V SOT-89 marking/标记 FS8854 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 2.5~6.5V |
| 输出电压VOUTVoltage - Output | 3V |
| 输出电流IoCurrent - Output | 350mA/0.35A |
| 最大压降VDOVoltage - Dropout | 500mV/0.5V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | 550mW/0.55W |
| Description & Applications | 350mA LDO Linear Regulator;•Low dropout voltage 500mV at 350mA (Typ.) •Up to ±35mV output voltage accuracy •Preset at 2.5V, 3.3V • Mask option from 1.3V to 5.0V •Small output capacitor •Output current limit •Thermal overload shutdown protection •Battery Powered Equipment •Palmtops •Portable Cameras and Video Recorders • Reference Voltage Sources • Post Regulator for Switching Power •Reference Voltage Sources •Post Regulator for Switching Power |
| 描述与应用 | 350毫安LDO线性稳压器;•在350mA的低压差电压500mV的 （典型值） •高达±35MV输出电压精度 •预置在2.5V，3.3V •从1.3V至5.0V的选项 •小的输出电容 •输出电流限制 •过热关断保护 •电池供电设备 •掌上电脑 •便携式相机和录像机 •参考电压源 •后稳压开关电源 •参考电压源 •后稳压开关电源 |
| 规格书PDF |
