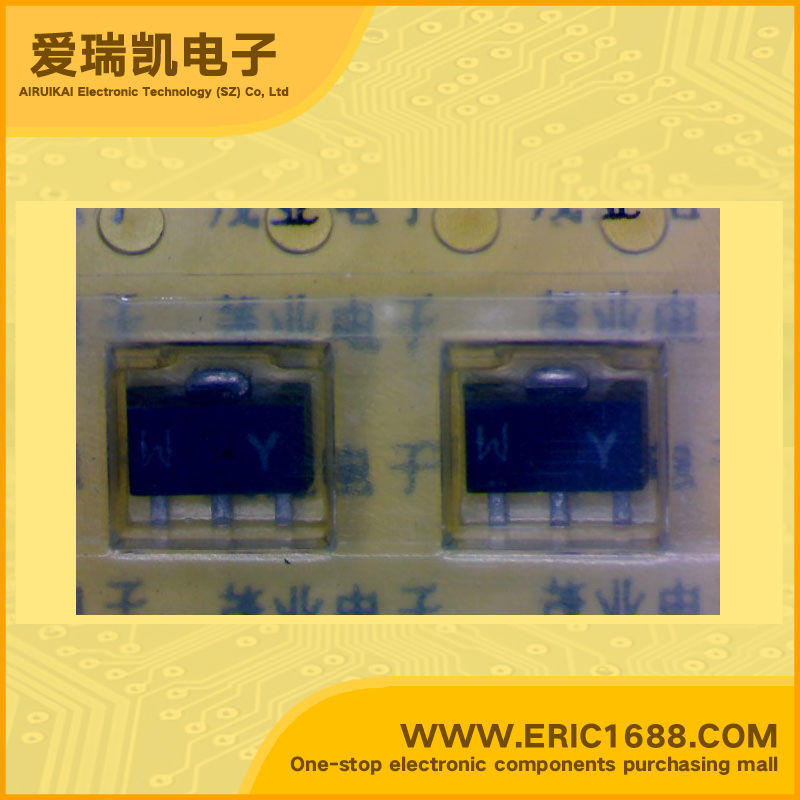

2SA1483-Y PNP三极管 -60V -200mA/-0.2A 200MHz 120~240 -300mV/-0.3V SOT-89/SC-62 marking/标记 WY
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −45V |
| 集电极连续输出电流ICCollector Current(IC) | −200mA/-0.2A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率PcPoWer Dissipation | 500mW/0.5W |
| Description & Applications | high transition frequency； low collector output capacitance； complementary to 2SC3803 |
| 描述与应用 | 高转换频率; 低集电极输出电容; 2SC3803互补 |
