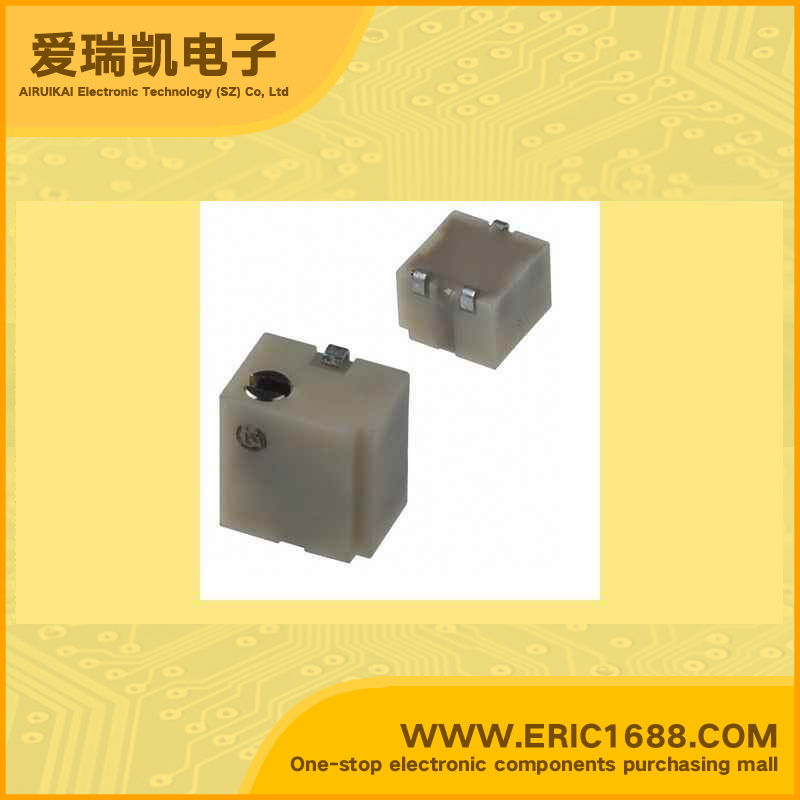

微调电位器 密封SMD型多转PVG5系列 PVG5H103C01R00 10KΩ/Ohm 3224-10K
| 电阻值Resistance | 10KΩ/Ohm |
| 额定功率Power | 0.25W,1/4W |
| 容差Tolerance | ±10% |
| 温度系数Temperature Coefficient | ±150ppm/°C |
| 圈数Number of Turns | 11 |
| 调节类型Adjustment Type | 侧面调节 Side Adjustment |
| 端子类型Termination Style | J引线 J Lead |
| Description & Applications | Trimmer Potentiometers SMD Sealed Type Multi-turn PVG5 Series Features 1. Sealed construction protects the interior from dust and liquid, which achieves stable performance. 2. Available with refl ow soldering method 3. Available for ultrasonic cleaning after soldering. 4. Clutch mechanism prevents excessive wiper rotation. 5. Both top and side adjustment directions. 6. Much smaller volume (1/5-1/2) than leaded multi-turn potentiometer. 7. Complies with RoHS directive by new Cd free cermet resistive material. Pb free terminals with Sn plating. Applications 1. Measuring instruments 2. Power supply 3. OA equipment 4. Sensors 5. Medical equipment 6. Base station for cellular phones |
| 描述与应用 | 微调电位器 密封SMD型多转PVG5系列 特点 1。密封结构可防止灰尘和液体内部，达到性能稳定。 2。可与回流焊接法 3。可用超声焊接后清洗。 4。离合器机构防止过多的旋转。 5。顶部和侧面的调整方向。 6。体积小得多（1/5-1/2），比含铅多圈电位器。 7。镉的新金属陶瓷电阻材料符合RoHS指令。无铅的镀锡端子。 应用 1。测量仪器 2。电源 3。 OA设备 4。传感器 5。医疗设备 6。用于蜂窝电话基 |
| 规格书PDF |
