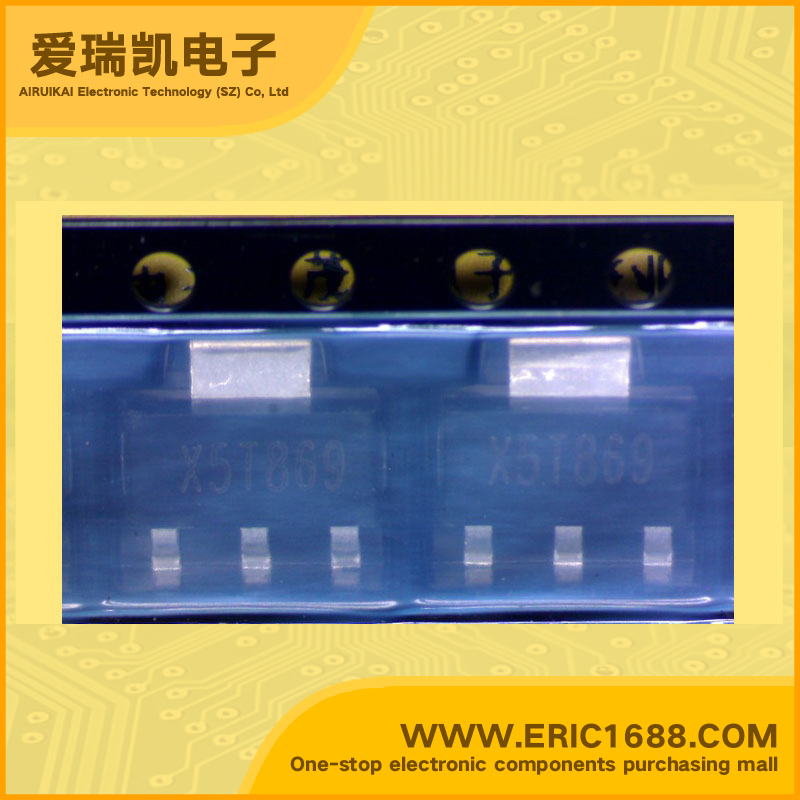

ZX5T869GTA NPN三极管 60V 7A 150MHz 450 150mV/0.15V SOT-223 marking/标记 X5T869
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 25V |
| 集电极连续输出电流ICCollector Current(IC) | 7A |
| 截止频率fTTranstion Frequency(fT) | 150MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 450 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 150mV/0.15V |
| 耗散功率PcPower Dissipation | 3W |
| Description & Applications | • 25V NPN LOW SATURATION TRANSISTOR IN SOT223 • Extemely low equivalent on-resistance; RSAT= 30m at 6.5A • 7 amps continuous current • Up to 20 amps peak current • Very low saturation voltages • Excellent hFE characteristics up to 20 amps |
| 描述与应用 | •低饱和25V NPN晶体管SOT223 •相当于Extemely低导通电阻; RSAT6.5A= 30M •7安培连续电流 •高达20安培的峰值电流 •极低的饱和电压 •优秀放大特性高达20安培 |
| 规格书PDF |
