类型Type | 低通 Low Pass |
技术Technology | LC |
通道数Number of Channels | 4 |
中心/截止频率Center / Cutoff Frequency | 80MHz |
衰减值Attenuation Value | 20dB@400MHz-3000MHz |
电阻 - 通道 (Ω)Resistance - Channel (Ohms) | 100Ω |
电流Current | |
数值Values | |
ESD 保护ESD Protection | 是 Yes |

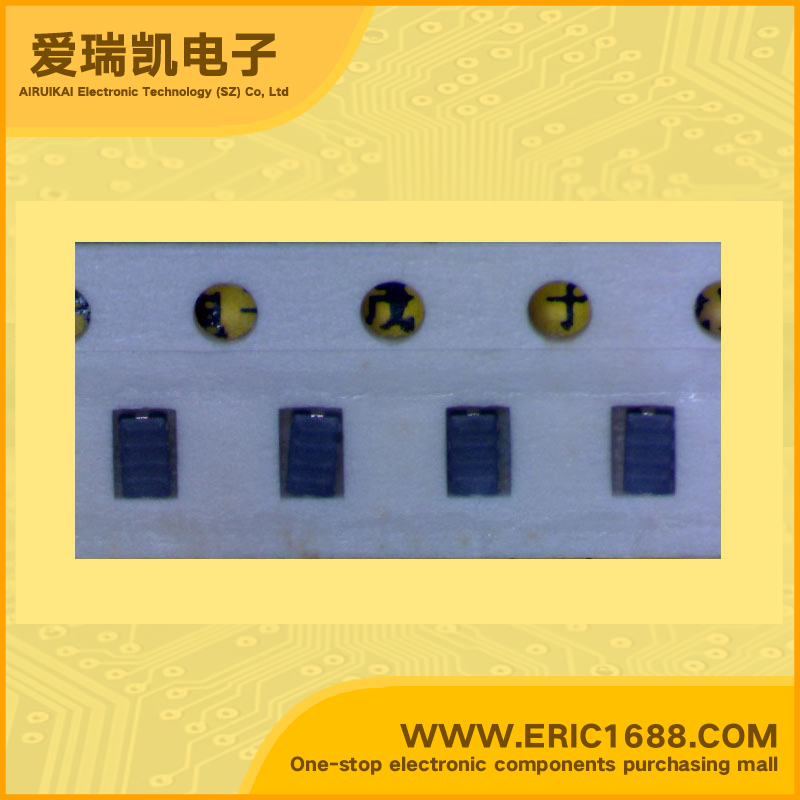

Description & Applications | Features · R-C type 4 channels array filter · 0508 size · IEC 61000-4-2 (ESD) Level #4, MSL Level #1 · Multilayer laminated structure Applications · Possible to apply variously for elimination of high frequency noise, and protection of ESD. · Intercept noise generating from control line and data line of LCD & Camera module. · Interrupt ESD flowing into the LCD and camera module. |
描述与应用 | 特点 ·R-C型4通道滤波器阵列 ·0508大小 ·IEC 61000-4-2(ESD)级第4, MSL等级#1 ·多层层压结构 应用 ·可以适用于不同的淘汰高 高频噪声,ESD保护。 ·拦截产生噪音控制线 LCD和相机模块的数据线。 ·中断ESD流入LCD和相机 模块。 |
规格书PDF |
