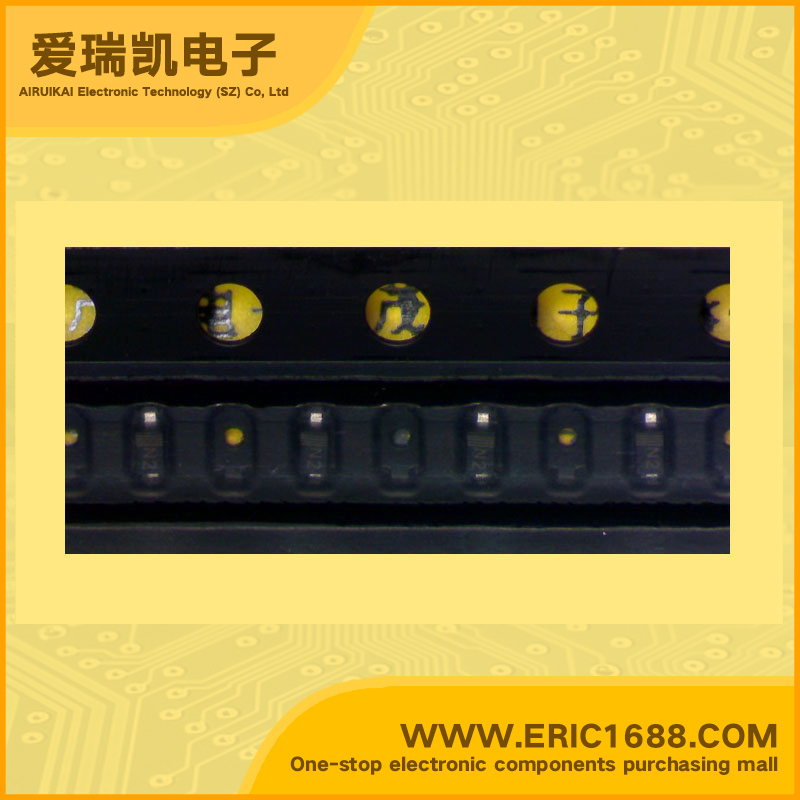

PESD5V0S1UB 瞬态抑制二极管TVS/ESD 5.5V 15A SOD-523/SC-79 标记N2
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5.5V |
| 反向击穿电压VBRBreakdown Voltage | 6.4V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 260W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 15A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | ESD protection diodes in SOD523 package；Features • Low capacitance bidirectional ESD protection diodes • Max. peak pulse power: PPP = 330 W at tp = 8/20 µs • Low clamping voltage: VCL = 20 V at IPP = 18 A • Ultra low leakage current: IRM < 700 nA • ESD protection > 23 kV • IEC 61000-4-2, level 4 (ESD) • IEC 61000-4-5 (surge); IPP = 18 A at tp = 8/20 µs |
| 描述与应用 | SOD523封装的ESD保护二极管;特性 •低电容双向ESD保护二极管 •最大峰值脉冲功率：Ppp=330 W@tp= 8/20μs •低钳位电压：VCL= 20V@ Ipp=18Å •超低漏电流：IRM<700 nA •ESD保护>23千伏 •IEC61000-4-2第4级（ESD） •IEC61000-4-5（浪涌）; Ipp=18 A@tp= 8/20μs |
| 规格书PDF |
