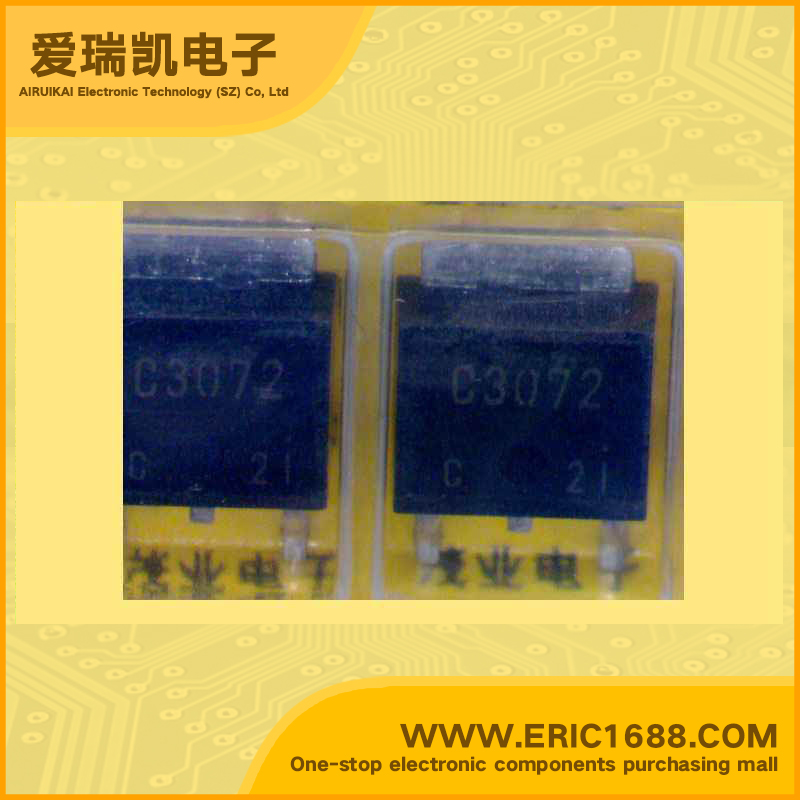

2SC3072-C NPN三极管 50V 5A 100MHz 300~450 1V TO-252/DPAK/PW-Mold marking/标记 C3072 中功率放大器 高增益
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流ICCollector Current(IC) | 5A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 300~450 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 1V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | NPN Silicon epitaxial Transistors Strobe flash applications Medium power amplifier applications High DC Current gain Low collector saturation voltage High power dissipation |
| 描述与应用 | NPN硅外延晶体管 闪光灯应用 中功率放大器应用 高直流电流增益 低集电极饱和电压 高功耗 |
| 规格书PDF |
