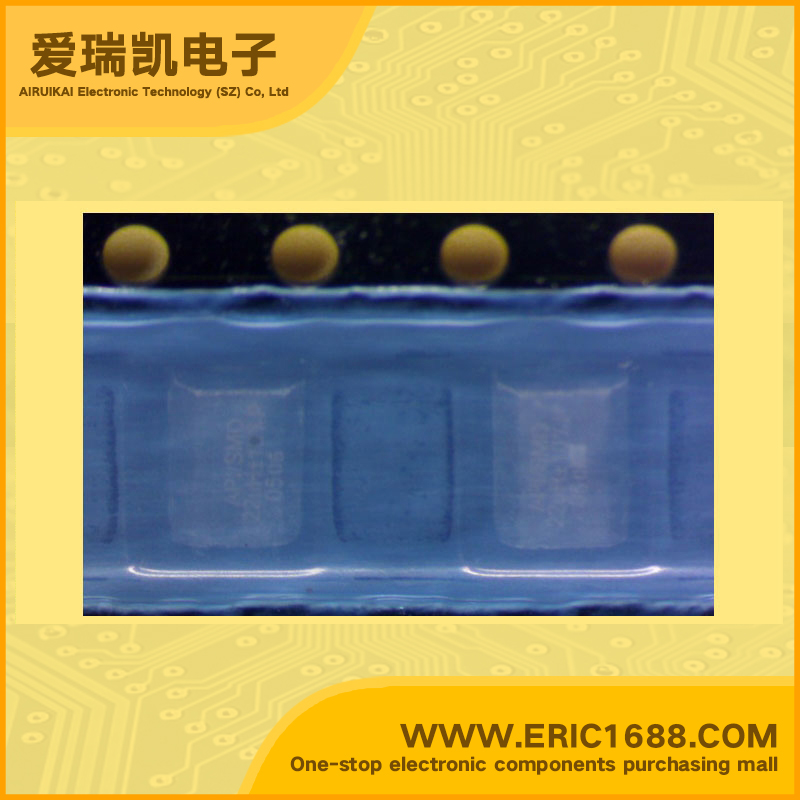

小功率电感 P1812-223K 22UH 4532-220
| 电感值Inductance | 22UH |
| 误差Tolerance | ±10% |
| 额定电流Current Rating | 370mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | |
| 自振谐频率SRFFrequency - Self Resonant | |
| DC电阻DCRDC Resistance (DCR) | 1.2Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | Series P1812 Operating Temperature Range –55°C to +125°C Current Rating at 90°C Ambient 35°C Rise Maximum Power Dissipation at 90°C 0.278 W Inductance Measured at 1V with no DC current Incremental Current The current at which the inductance will be decreased by a maximum of 5% from its initial zero DC value. Packaging Tape & reel (16mm): 7" reel, 500 pieces max.; 13" reel, 2200 pieces max. |
| 描述与应用 | P1812系列 工作温度范围-55°C至+125°C 额定电流在90°C的环境温度35°C上升 在90°C0.278 W的最大功率耗散 电感在1V没有直流电流测量 增量电流的电感电流，将减少5％，从最初的零直流值最多。 包装磁带和卷轴（16毫米）：7“卷轴，500件最大。13卷，2200件最大。 |
| 规格书PDF |
