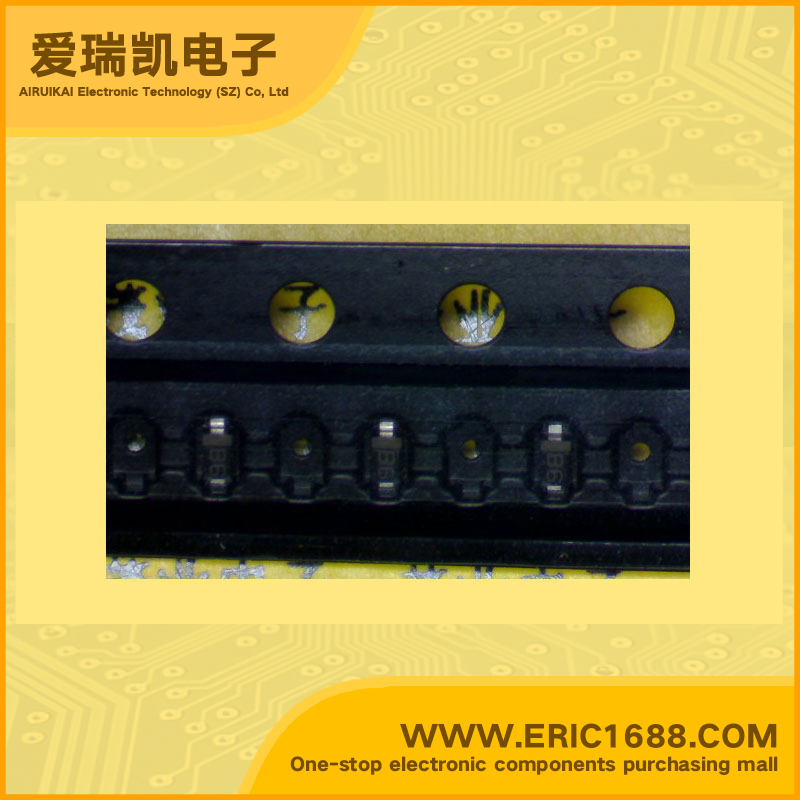

HVC374B1TRF 变容二极管 10V 21.5pF-24.00pF 1.680-1.750 SOD-523/UFP/0603 marking/标记 B6 调谐/低工作电流
| 反向电压VRReverse Voltage | 10V |
| 电容值CDiode capacitance | 21.5pF-24.00pF |
| @反向电压VR@Reverse Voltage | 1V |
| 电容值CDiode capacitance | 12.50pF-14.50pF |
| @反向电压VR@Reverse Voltage | 2V |
| 电容比Capacitance ratio | 1.680-1.750 |
| Description & Applications | Variable Capacitance Diode for VCO High capacitance ratio and good C-V linearity To be usable at low voltage Low operation current Ultra small Flat Lead Package (UFP) is suitable for surface mount design |
| 描述与应用 | VCO的变容二极管 高电容率和良好的C-V线性 要在低电压下也可以使用 低工作电流 超小型扁平引脚包装（UFP）适合于表面贴装设计 |
| 规格书PDF |
