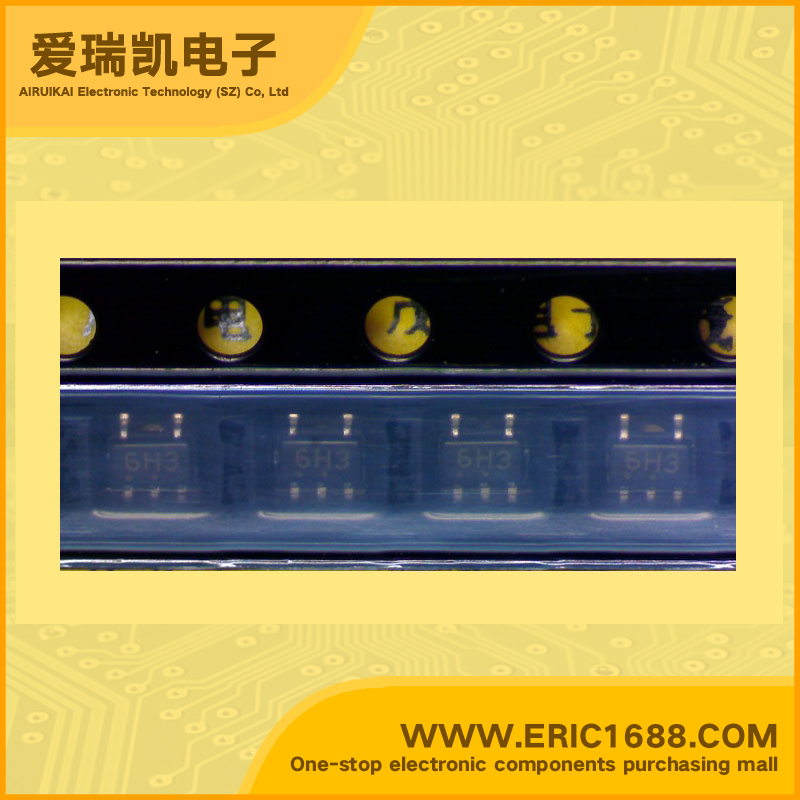

NSQA6V8AW5T2G 瞬态抑制二极管TVS/ESD 5V 1.6A 0.38W/380mW SOT-353/SC-88A 标记6H3
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5V |
| 反向击穿电压VBRBreakdown Voltage | 6.8V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 20W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 1.6A |
| 额定耗散功率PdPower dissipation | 0.38W/380mW |
| Description & Applications | Features • Transient Voltage Suppressor • ESD Protection Diode with Low Clamping voltage • Small SC−88A SMT Package • Stand Off Voltage: 5 V • Low Leakage Current < 1 uA • Four Separate Unidirectional Configurations for Protection • ESD Protection: IEC61000−4−2: Level 4 MILSTD 883C − Method 3015−6: Class 3 • Pb−Free Packages are Available |
| 描述与应用 | 特性 •瞬态电压抑制器 •低钳位电压 •小型SC-88A SMT封装 •待机关闭电压：5 V •低漏电流小于1uA四个单独的单向配置保护 •ESD保护：IEC61000-4-2第4级MIL-STD883C - 方法3015-6：3级 •无铅包装可用 |
| 规格书PDF |
