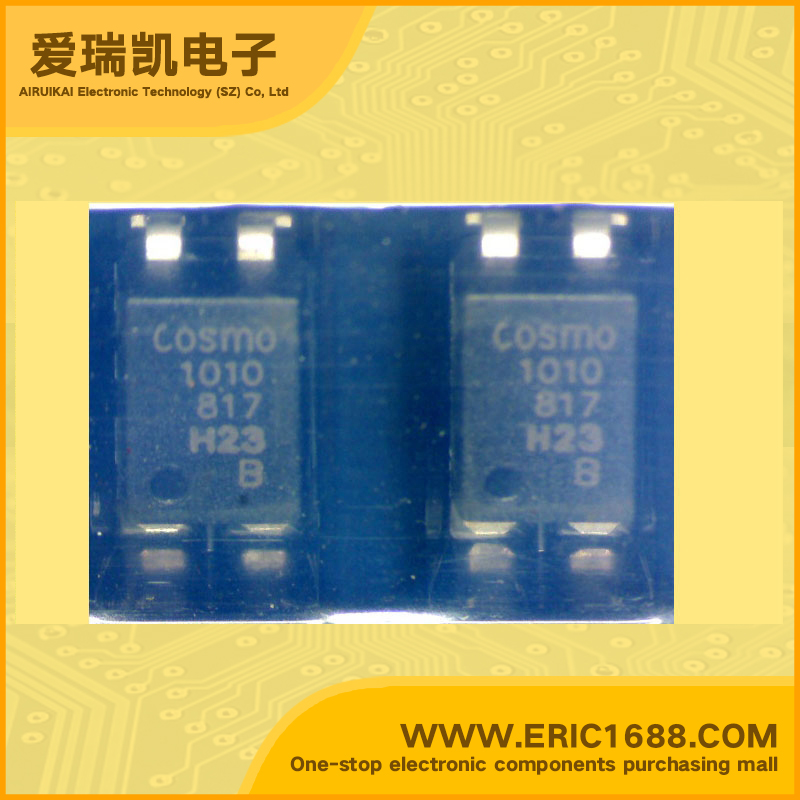

光电耦合器 晶体管，光电输出 K1010-4B SOP-4 marking/标记 1010
| 通道数Number of Channels | 1 |
| 输入类型Input Type | DC |
| 电压 - 隔离Voltage - Isolation | 5000Vrms |
| 电流传输比（最小值）Current Transfer Ratio (Min) | 50％ |
| 电流传输比（最大值）Current Transfer Ratio (Max) | 600％ |
| 电压 - 输出Voltage - Output | 60V |
| 电流 - 输出/通道Current - Output / Channel | 50mA |
| 电流 - DC 正向 (If)Current - DC Forward (If) | 50mA |
| Vce 饱和值（最大值）Vce Saturation (Max) | 0.2V |
| 输出类型Output Type | |
| Description & Applications | Features • High Reliability Photo Coupler • Current transfer ratio(CTR:MIN.50% at IF=5mA Vce=5V) • High isolation voltage between input and output (Viso:5000Vrms). • Compact dual-in-line package. • Available package : DIP/ SMD/ H. (For Package Dimension please refer to page 82 ) APPLICATIONS • Registers, copiers, automatic vending machines. • System appliances, measuring instruments. • Computer terminals, programmable controllers. • Communications, telephone, etc. • Electric home appliances, such as oil fan heaters, Microwave oven,Washer, Refrigerator, Air conditioner, etc. • Medical instruments, physical and chemical equipment. • Signal transmission between circuits of different potentials and impedances. • Facsimile equipment, Audio, Video. • Switching power supply, Laser beam printer. |
| 描述与应用 | 特点 •高可靠性照片耦合 •电流传输比（CTR：至少50％在IF =5毫安VCE= 5V） •高隔离输入和输出之间的电压（5000VRMS维索）。 •紧凑型双列直插式封装。 •可用包装：包装尺寸DIP / SMD/ H（请参阅第82页） 应用 •寄存器，复印机，自动售货机。 •系统设备，测量仪器。 •电脑终端，可编程控制器。 •通信，电话等 •电家电产品，如石油暖风机，微波炉，洗衣机，冰箱，空调等。 •医疗仪器，设备的物理和化学。 •不同的潜能和阻抗的电路之间的信号传输。 •传真设备，音频，视频。 •开关电源，激光束打印机。 |
| 规格书PDF |
