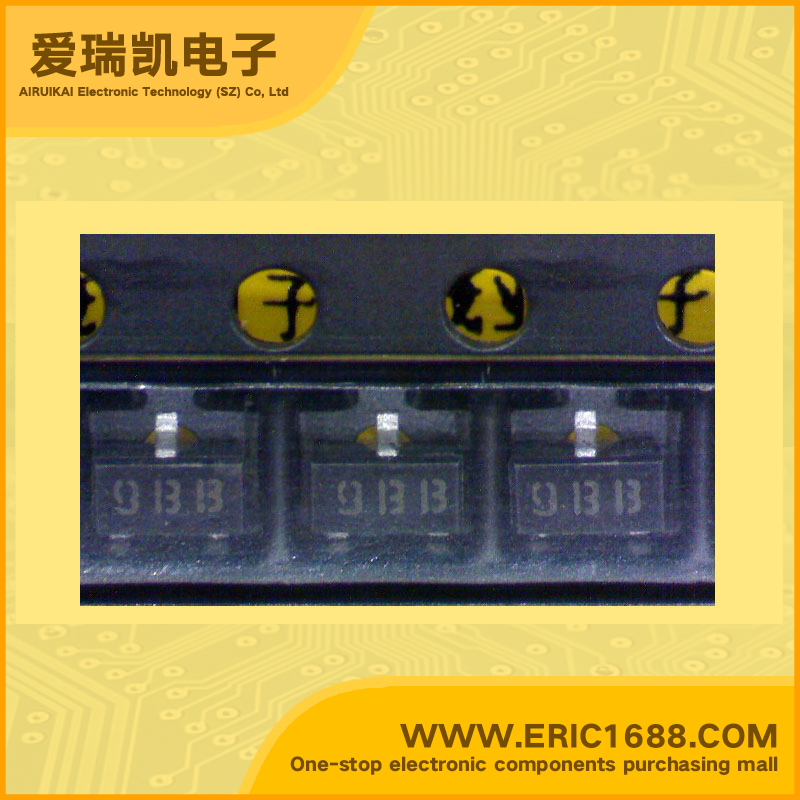

BC857-B PNP三极管 -50V -100mA/-0.1A 150MHz 200~450 -250mV/-0.25V SOT-23 marking/标记 9BB 开关/放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | −50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −45V |
| 集电极连续输出电流ICCollector Current(IC) | −100mA/-0.1A |
| 截止频率fTTranstion Frequency(fT) | 150MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 200~450 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -250mV/-0.25V |
| 耗散功率PcPoWer Dissipation | 310mW/0.31W |
| Description & Applications | General purpose switching and amplification； FEATURES *Suitable for automatic insertion in thick and thin-film circuits *Complement to BC846/BC847/BC848 |
| 描述与应用 | 通用开关和放大; 特点 *适用于自动插入厚薄膜电路 *补充BC846/BC847/BC848 |
| 规格书PDF |
