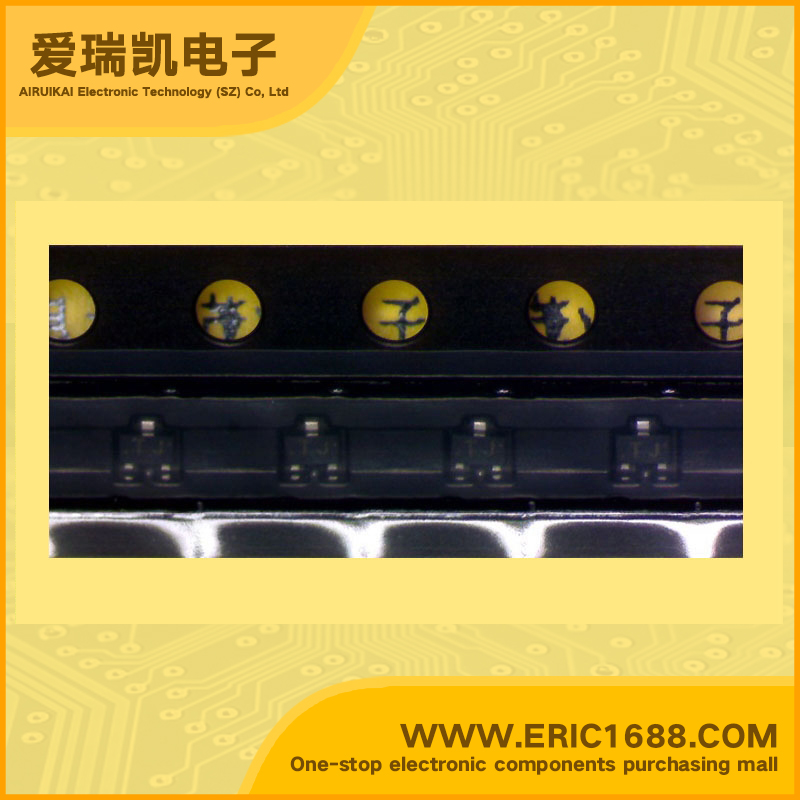

MT3S12T NPN三极管 13V 40mA 5GHz~7GHz 100~160 SOT-623/TESM marking/标记 TJ VHF?UHF频段低噪声放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 13V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 6V |
| 集电极连续输出电流ICCollector Current(IC) | 40mA |
| 截止频率fTTranstion Frequency(fT) | 5GHz~7GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~160 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | |
| Description & Applications | VHF~UHF Band Low-Noise Amplifier Applications VHF~UHF Band Oscillator Applications Superior performance in oscillator applications. • Superior noise characteristics : NF = 1.7 dB, |S21e| 2 = 4.5 dB (f = 2 GHz) |
| 描述与应用 | •VHF〜UHF频段低噪声放大器应用 •VHF〜UHF频带振荡器/缓冲器应用 振荡器应用中的卓越性能。 •高级噪声特性 ：NF=1.7分贝，S21E| 2 =4.5分贝（F =2吉赫） |
| 规格书PDF |
