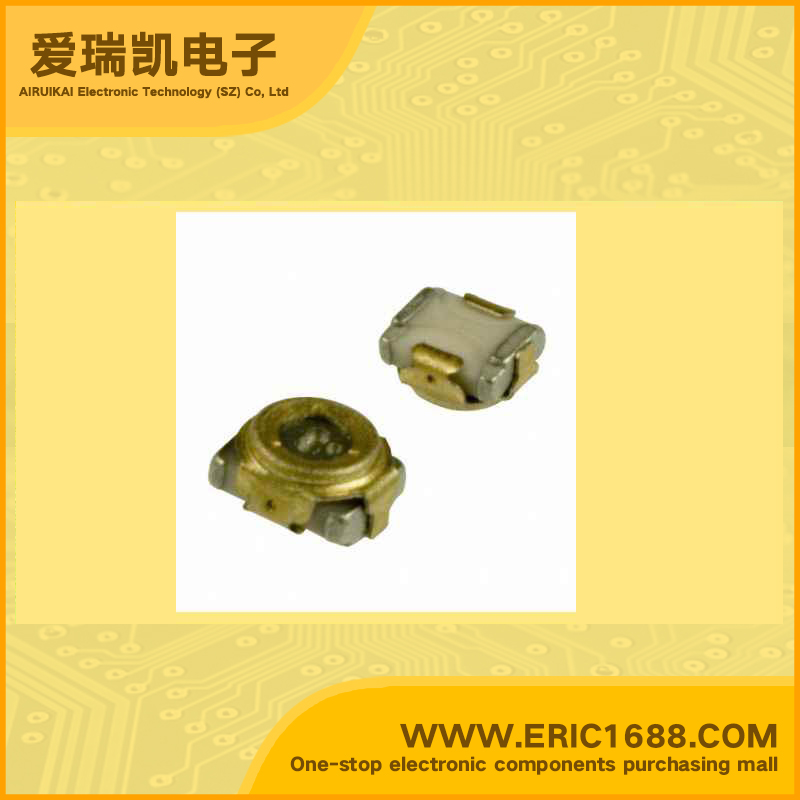

可调电容 TZR1Z010A001R00 0.55-1.0pf 2X2-10P
| 电容范围Capacitance Range | 0.55-1.0pf |
| 调节类型Adjustment Type | 顶部调节 Top Adjustment |
| 额定电压Voltage - Rated | 25V |
| Description & Applications | Features 1. Ultra-small and thin with external dimensions of 1.5(W)x1.7(L)x0.85(H)mm (80% less in volume than the current product). 2. Unique construction with no plastic material provides superior soldering heat resistance to maintain excellent characteristic performance after reflow soldering. 3. Suitable for high frequency circuit due to high self resonant frequency (6.2GHz of TZR1Z010 at 1.0pF setting) Applications 1. "Bluetooth" 2. Crystal oscillators 3. Crystal filters 4. Hand radios 5. Miniature tuner packs (FM Radio, TV) 6. Remote keyless entry systems 7. Pagers |
| 描述与应用 | 特点 1。超小而薄，外形尺寸 1.5（W）×1.7（长）×0.85（高）mm （减少80％，体积比当前的产品）。 2。建筑独特的无塑料材料 提供优异的耐焊接热 保持性能的稳定性 回流焊接后。 3。适用于高频电路，由于高 自谐振频率（6.2GHz的TZR1Z010在的 1.0PF设置） 应用 1。 “蓝牙”2。晶体振荡器 3。晶体滤波器4。便携式无线电 5。微型调谐器包（FM广播，电视） 6。遥控无钥匙进入系统 7。寻呼机 |
| 规格书PDF |
