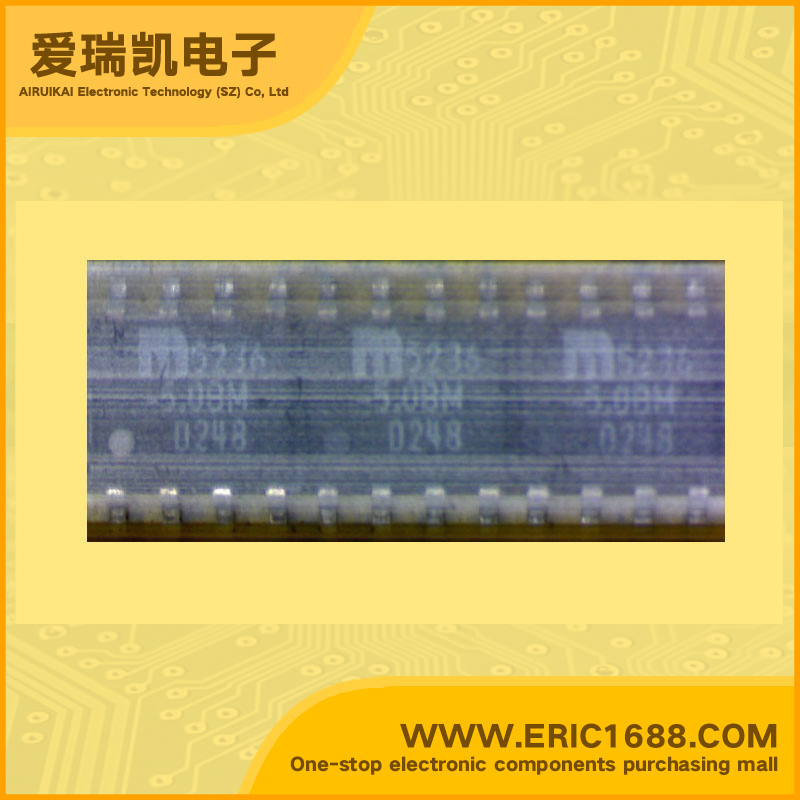

MIC5236-5.0BMTR LDO电压调整器/稳压电源IC 5V 300mV/0.3V 带使能脚EN/CE SOIC-08L marking/标记 5236-5.0BM 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 2.3~30V |
| 输出电压VOUTVoltage - Output | 5V |
| 输出电流IoCurrent - Output | 150mA/0.15A |
| 最大压降VDOVoltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | Low Quiescent Current µCap LDO Regulator ;•Ultra-low quiescent current (IQ= 20µA @IO = 100µA) • Wide input range: 2.3V to 30V • Fixed 2.5V, 3.0V, 3.3V, 5.0V, and Adjustable outputs • ±1.0% initial output accuracy • Stable with ceramic or tantalum output capacitor • Load dump protection: –20V to +60V input transient survivability • Logic compatible enable input • Low output flag indicator • Overcurrent protection • Thermal shutdown • Reverse-leakage protection • Reverse-battery protection • Keep-alive supply in notebook and portable personal computers • Logic supply from high-voltage batteries • Automotive electronics • Battery-powered systems |
| 描述与应用 | 低静态电流μCapLDO稳压器;•超低静态电流（IQ=20μA@ IO=100μA） •宽输入电压范围：2.3V至30V •固定的2.5V，3.0V，3.3V，5.0V和可调输出 •初始输出精度±1.0％ •稳定与陶瓷输出电容或钽 •负载突降保护：-20V至+60 V输入瞬变 生存能力 •逻辑兼容使能输入 •低输出指示器 •过流保护 •热关断 •反向漏电保护器 •反向电池保护 便携式个人计算机 •逻辑电源从高电压电池 •汽车电子 •电池供电系统 |
| 规格书PDF |
