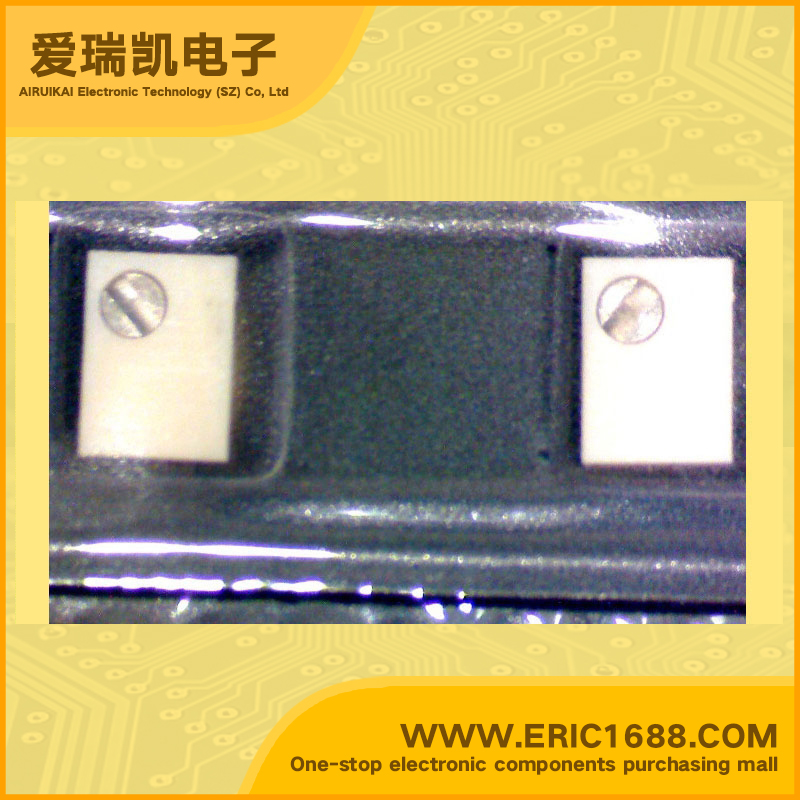

可调电阻 3224W-1-103E 10KΩ/Ohm 3224-10K marking/标记 103
| 电阻值Resistance | 10KΩ/Ohm |
| 额定功率Power | 0.25W，1/4W |
| 容差Tolerance | ±10% |
| 温度系数Temperature Coefficient | ±100ppm/°C |
| 圈数Number of Turns | 12 |
| 调节类型Adjustment Type | 顶部调节 Top Adjustment |
| 端子类型Termination Style | J引线 J Lead |
| Description & Applications | ■ Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed ■ Sealed to withstand board wash processing ■ 4mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint ■ Low CRV - 1 % ■ 3224 - 4 mm SMD Trimpot® Trimming Potentiometer |
| 描述与应用 | ■表面贴装4毫米/多圈金属陶瓷/工业/密封 ■密封承受冲洗电路板处理 ■4mm的设计符合EIA/ EIAJ/ IPC/ VECI的SMD标准微调足迹 ■低CRV - 1％ ■3224 - 4毫米SMD器系列Trimpot®微调电位器 |
| 规格书PDF |
