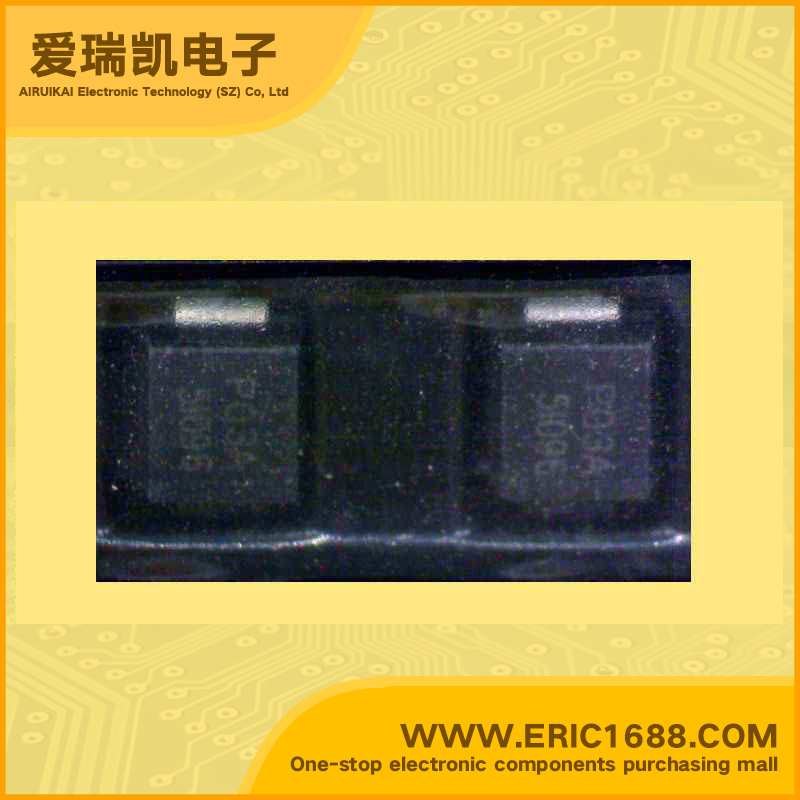

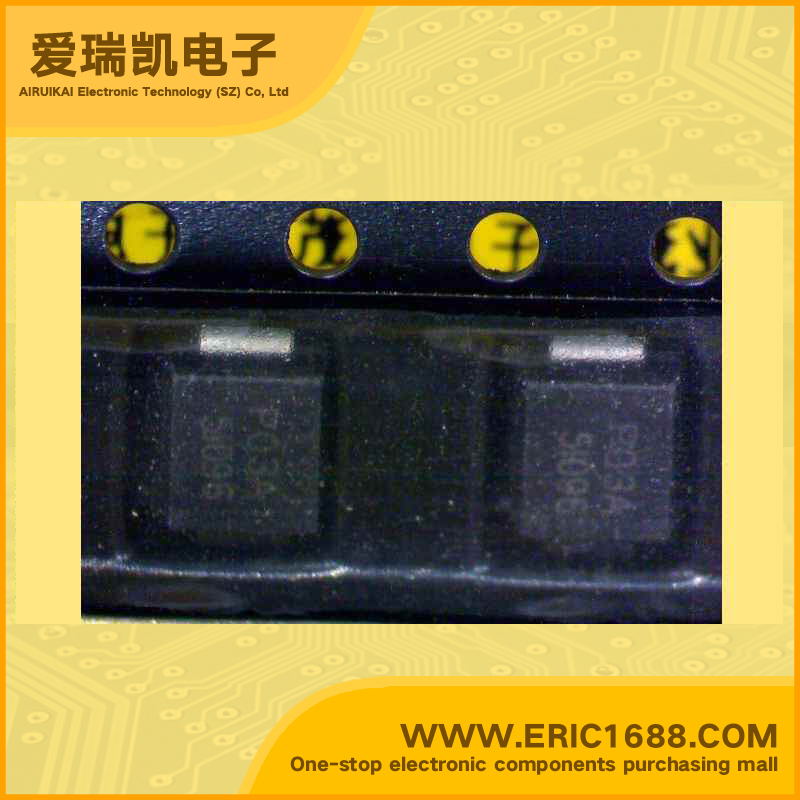

可控硅/晶闸管 浪涌吸收器 P0300SARP SMB/DO-214AA marking/标记 P03A
| 击穿电压VBOBreakover voltage | |
| 断态重复峰值电压VDRMRepetitive peak off-state voltage | 25V |
| 峰值通态电压VTMOn-state voltage | 4V |
| 峰值脉冲电流(8 x 20us)Current - Peak Pulse (8 x 20µs) | 150A |
| 峰值脉冲电流(10 x 1000us)Current - Peak Pulse (10 x 1000µs) | 45A |
| 保持电流IHHolding current | 50mA |
| Description & Applications | DO-214AA SIDACtor solid state protection devices protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. SIDACtor devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA/EIA-IS-968 |
| 描述与应用 | 固态保护设备可以保护电信设备 如调制解调器，线卡，传真机，以及其他CPE。 SIDACtor装置用于使能设备，以满足不同的监管要求 包括GR 1089 ITU K.20，K.21和K.45，IEC60950，UL60950，TIA/EIA-IS-968的 |
| 规格书PDF |
