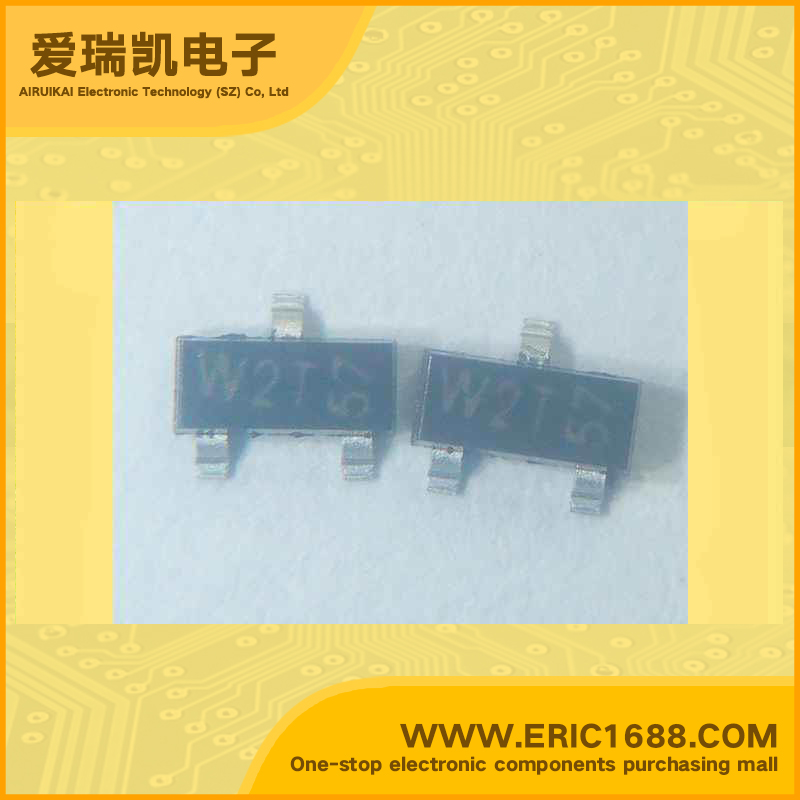

PMBT4403 PNP三极管 -40V -600mA/- 0.6A 250MHz 100~300 -750mV/-0.75V SOT-23/SC-59 marking/标记 W2T 开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -40V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −40V |
| 集电极连续输出电流ICCollector Current(IC) | −600mA/- 0.6A |
| 截止频率fTTranstion Frequency(fT) | 250MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -750mV/-0.75V |
| 耗散功率PcPoWer Dissipation | 250mW/0.25W |
| Description & Applications | PNP switching transistor FEATURES • Low current • Low voltage APPLICATIONS • Industrial and consumer switching applications DESCRIPTION PNP switching transistor in a SOT23 plastic package. NPN complement: PMBT4401.. |
| 描述与应用 | PNP开关晶体管 特点 •低电流 •低电压 应用 •工业和消费类开关应用 说明 PNP开关晶体管在SOT23塑料包装。 NPN补充：PMBT4401.. |
| 规格书PDF |
