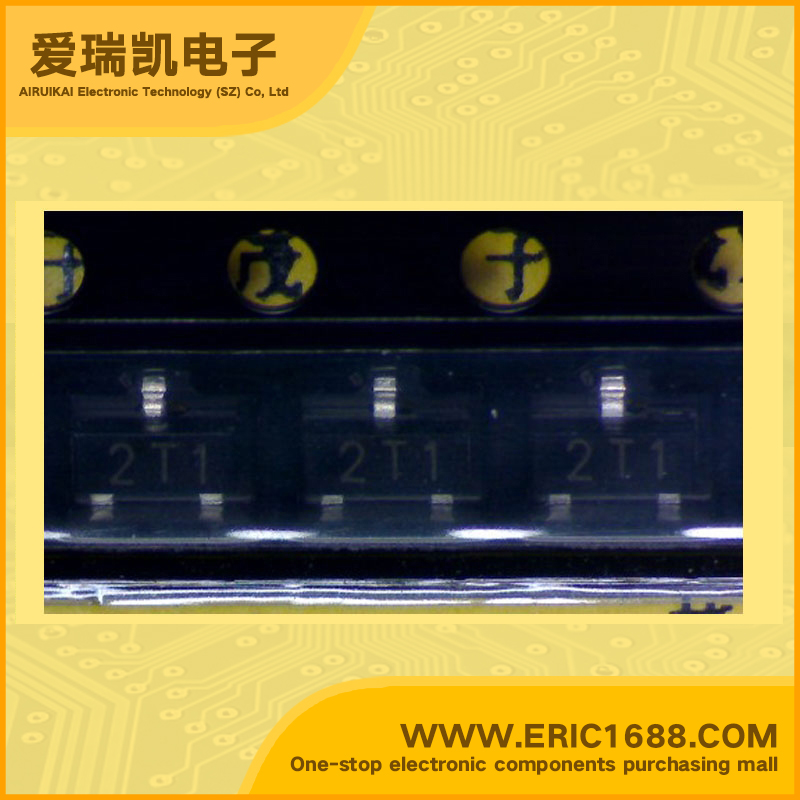

S9012 PNP三极管 -40V -500mA/-0.5A 150MHz 120~350 -600mV/-0.6V SOT-23 marking/标记 2T1
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -40V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −25V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 150MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~350 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −600mV/-0.6V |
| 耗散功率PcPoWer Dissipation | 225mW/0.225W |
| Description & Applications | PNP General Purpose Transistors Lead-Free |
| 描述与应用 | PNP通用晶体管 无铅 |
| 规格书PDF |
