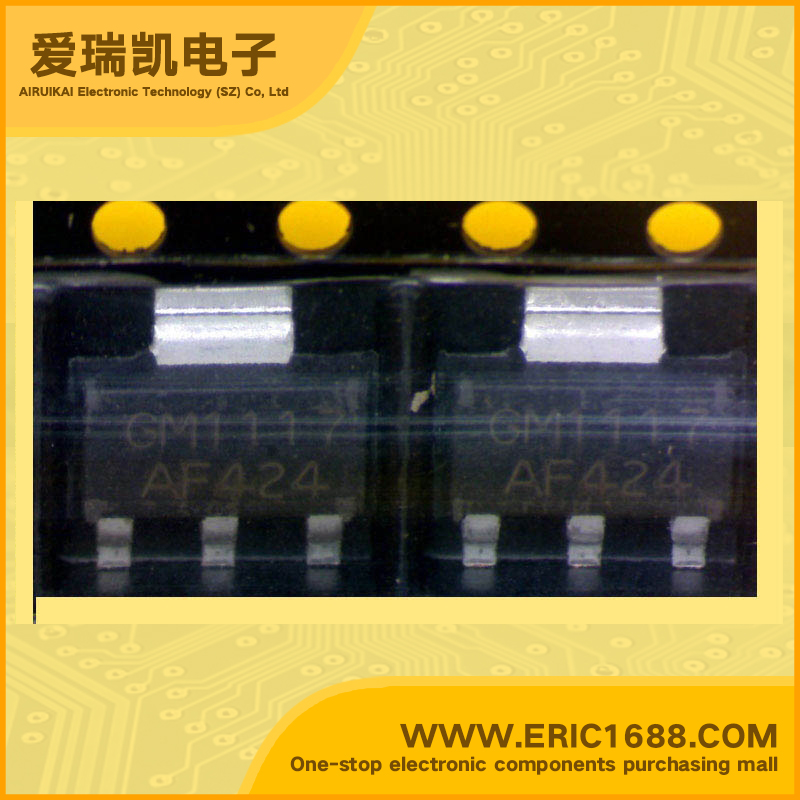

GM1117-AST3R LDO电压调整器/稳压电源IC 可调/adj 1.15V SOT-223 marking/标记 GM1117 短路保护 过热保护
电路数量Number of Regulators | 1 |
输入电压VINVoltage - Input | 7V |
输出电压VOUTVoltage - Output | 可调/adj |
输出电流IoCurrent - Output | 1A |
最大压降VDOVoltage - Dropout | 1.15V |
带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
最大耗散功率PdPower dissipation | |
Description & Applications | 1.0A LOW DROPOUT PRECISION LINEAR REGULATORS ;•Adjustable or Fixed Output •Output Current of 1.0A •Dropout Voltage (Typical) 1.15V @ 1.0A •Line Regulation 0.2% max. •Load Regulation 0.4% max. •Fast Transient Response •Current Limit Protection •Thermal Shutdown Protection |
描述与应用 | 1.0A低漏失精密线性稳压器;•可调或固定输出 •输出电流为1.0A •漏失电压(典型值)1.15V@1.0A •线路调整0.2%最大。 •负载调整率0.4%以下。 •快速瞬态响应 •电流限制保护 •热关断保护 |
规格书PDF |
