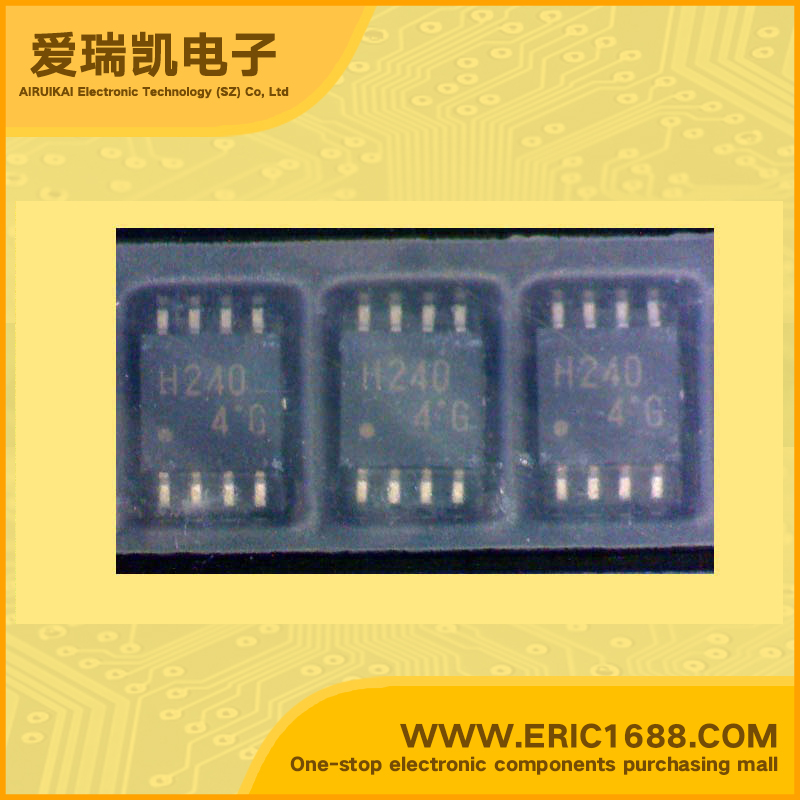

集成电路IC 反相器 TC7WH240FU SM8 marking/标记 H240
| 逻辑类型Logic Type | 反相器 Inverter |
| 电路数Number of Circuits | 2 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 0.5 V ~ 1.5 V |
| 静态电流IqCurrent - Quiescent (Max) | |
| 输出高，低电平电流Current - Output High, Low | 8mA，8mA |
| 低逻辑电平Logic Level - Low | |
| 高逻辑电平Logic Level - High | |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | |
| Description & Applications | The TC7WH240F is an advanced high speed CMOS DUAL BUS BUFFERS fabricated with silicon gate MOS technology.inverted,3-state outputs They achieve the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. |
| 描述与应用 | TC7WH240F是一种先进的高速CMOS双总线缓冲器与硅栅MOS技术编造。反相,3-态输出 他们实现了高速操作类似相当于双极肖特基TTL同时保持低功耗的CMOS。 |
| 规格书PDF |
