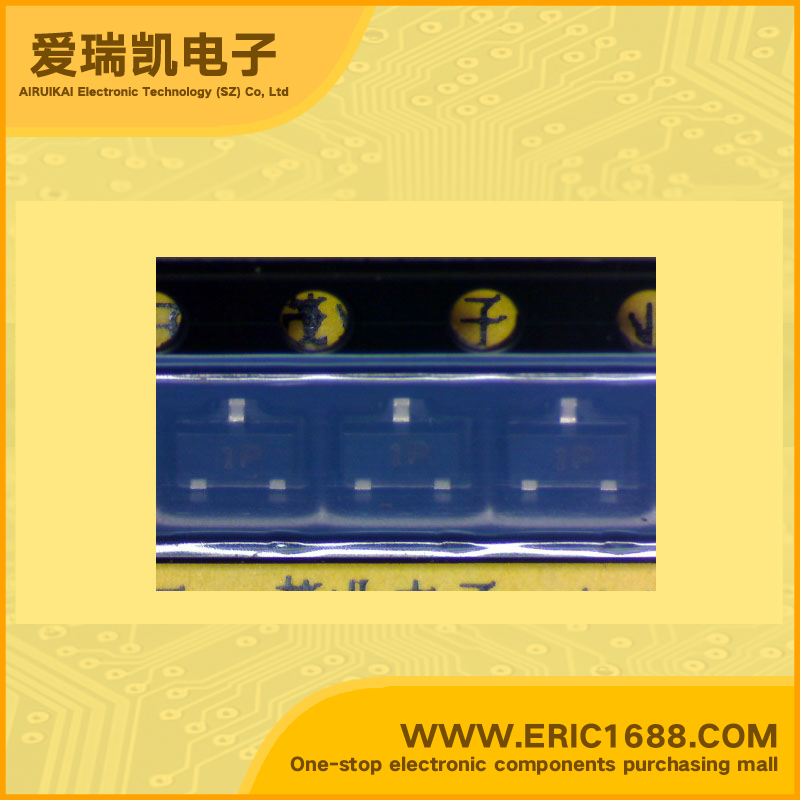

KST2222AMTF NPN三极管 75V 600mA/0.6a 300MHz 100~300 1V SOT-23/SC-59 marking/标记 1P
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 75V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流ICCollector Current(IC) | 600mA/0.6A |
| 截止频率fTTranstion Frequency(fT) | 300MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 1V |
| 耗散功率PcPower Dissipation | 350mW/0.35W |
| Description & Applications | NPN Epitaxial Silicon Transistor General Purpose Transistor |
| 描述与应用 | NPN外延硅晶体管 通用晶体管 |
| 规格书PDF |
